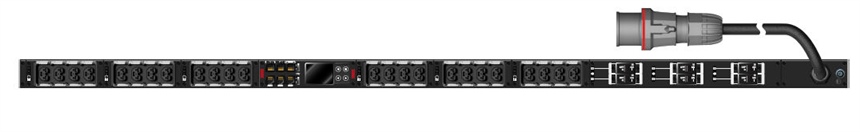

RNX-RN3349 UPDU Module/Outlet Metered RNX 3P 32A - 24Port Combo PDU C13/C15/C19/C21

RNX UPDU 3000 3P 32A 24PORT

Description:

Features:

UPDU 3000 SERIES

- The Fully Modular Intelligent PDU
- Designed for future investment
- Flexible & Engineer Friendly
- 2 Year Warranty
Swiss Engineering

U-PDU – RN3000 SERIES

Multiple upgradeable outlet blocks….
Two PDU types in Horizontal & Vertical Solutions
Type 1: Module Metered & Module Outlet Metered
Type 2: Module Switched & Module Metered &
Switched
4 Building Blocks….
PIM – Power Inlet Module with LSZH Power Cable
CBM – Circuit Breaker Module
POM – Power Outlet Module
ICM – Interface Controller Module
RCM+ - for early detection of faulty equipment

U-PDU – NETWORK CONTROLLER

Built in POE switch
2x Gb POE ports, 1x 100Mb port
3x sensor ports inc. RS232 port
2x high speed USB-A ports
Reboot under 2 seconds
Auto rotating display
Colour 2.4’’ TFT display
Measures Voltage (V), Current (A), Active Power (W), Apparent Power (VA), Reactive Power (VAR), Active energy (kWh), Reactive energy (kVARh), Frequency (Hz), Power Factor (pf)
Integrated Web GUI with fail safe boot/upgrade

4 WAY COMBO SOCKET:

Locks on C13 , C19 , C15 & C21
6 outlets on each Combo Module
Switched Module sockets light up to show on (green) or off (red)
UPDU’s comes in various outlet configs
No change to UPDU physical size

U-PDU – OUTLET MODULE

Light display for outlets on both sides of the socket for ease
red-off
green-good
Quick display outlet button for each module block
Outlet Module upgrade via Network Key

U-PDU – BRACKETS

Easy fitting into any 19’’ rack solution, vertical or horizontal
Slimline aluminium chassis (50x60mm) for 63A (65x55mm

RNX UPDU 3P 32A 24PORT

Specification:

UPDU Module/Outlet Metered 3P 32A - 24 Combo Outlets C13/C15/C19/C21

[RN3349] UPDU Module/Outlet Metered 3x32A 24 Combo C13/C15/C19/C21
black
Universal Power Distribution Unit
Fully modular, assembled from the front
Inlet: 3x32A, 22kW, 3m cable 6mm2, CEE32/5 6h
Outlets: 24x Combo C13/C15/C19/C21, black background
6 Modules with 4 Combo each, TwyLock compatible
Metered per Module: Anytime upgradable to Outlet Metered with additional licence
6x high quality compact hydraulic-magnetic MCBs 16A, 10kA Interrupting Capacity
2x Gbit (PoE) and 1x 100Mbit Ethernet (https, snmp, ssh, syslog, ntp)
3x AUX Ports for external Sensors
2x High-Speed USB Ports (Type A)
2.4” graphic full-color TFT display (auto-orienting)
Incl. 2 mounting buttons for tool-less mounting

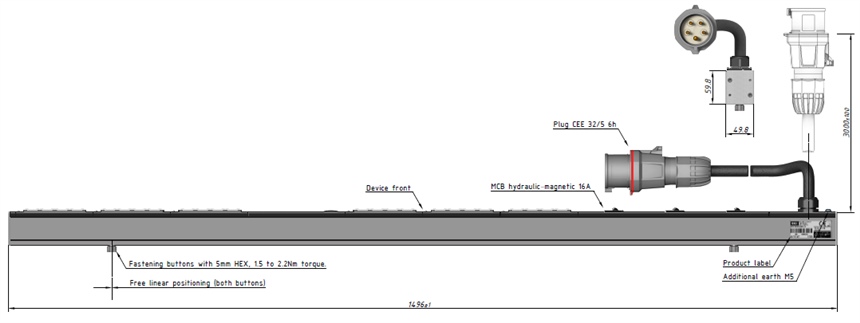

Length 1'496mm
Weight 6.5000kg, Volume 0.045045m
Origin Switzerland, HS code 8537.1000

CONNECTIVITY;

SNMP v2/v3 (including traps)
IPv4/v6
HTTPS
Rest API
RSTP
NTP
DNS
DHCP
Telnet
Serial Console
SSH
Syslog
Modbus TCP
LLDP
TFTP
SFTP (send reports and logs in CSV)
FTP
SMTPS (send alarms, reports, logs in CSV)
Star Topology
Daisy Chain Topology
Ring Topology

U-PDU – BRACKETS

Easy fitting into any 19’’ rack solution, vertical or horizontal
Slimline aluminium chassis (50x60mm) for 63A (65x55mm
