RNX-RN3631 UPDU Module/Outlet Switched & Metered RNX 3P 16A - 18Port Combo PDU C13/C15/C19/C21
3P 16A 18PORT SM
Description:

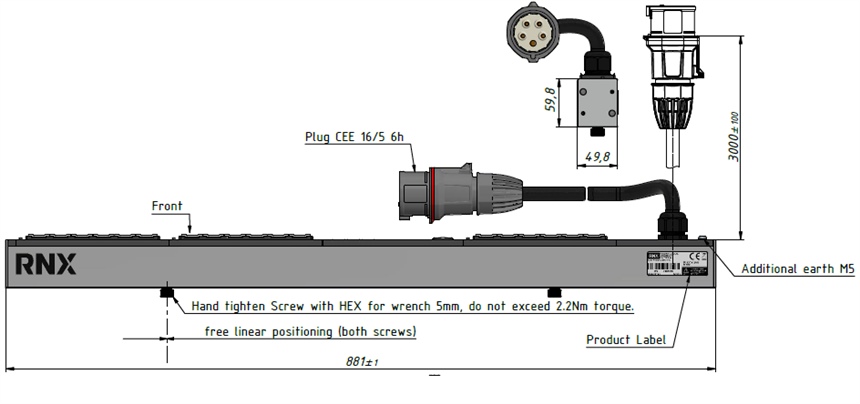

[RN3631] UPDU Outlet Switched & Metered 3x16A 18 Combo C13/C15/C19/C21 black Universal Power Distribution Unit Fully modular, assembled from the front Inlet: 3x16A, 11kW, 3m cable 2.5mm2, CEE16/5 6h Outlets: 18x Combo C13/C15/C19/C21, black background 3 Modules with 6 Combo each, TwyLock compatible Switched per Outlet (bistable 20A high quality relays) Metered per Outlet 2x Gbit (PoE) and 1x 100Mbit Ethernet (https, snmp, ssh, syslog, ntp, etc.) 3x AUX Ports for external Sensors 2x High-Speed USB Ports (Type A) 2.4” graphic full-color TFT display (auto-orienting) Incl. 2 mounting buttons for tool-less mounting Length 881mm Weight 0.0000kg, Volume 0.000000m Origin Switzerland, HS code 8537.1000
Features:
UPDU 3000 SERIES
- The Fully Modular Intelligent PDU
- Designed for future investment
- Flexible & Engineer Friendly
- 2 Year Warranty
Swiss Engineering
U-PDU – RN3000 SERIES
Multiple upgradeable outlet blocks….
Two PDU types in Horizontal & Vertical Solutions
Type 1: Module Metered & Module Outlet Metered
Type 2: Module Switched & Module Metered &
Switched
4 Building Blocks….
PIM – Power Inlet Module with LSZH Power Cable
CBM – Circuit Breaker Module
POM – Power Outlet Module
ICM – Interface Controller Module
RCM+ - for early detection of faulty equipment
U-PDU – NETWORK CONTROLLER
Built in POE switch
2x Gb POE ports, 1x 100Mb port
3x sensor ports inc. RS232 port
2x high speed USB-A ports
Reboot under 2 seconds
Auto rotating display
Colour 2.4’’ TFT display
Measures Voltage (V), Current (A), Active Power (W), Apparent Power (VA), Reactive Power (VAR), Active energy (kWh), Reactive energy (kVARh), Frequency (Hz), Power Factor (pf)
Integrated Web GUI with fail safe boot/upgrade
4 WAY COMBO SOCKET:
Locks on C13 , C19 , C15 & C21
6 outlets on each Combo Module
Switched Module sockets light up to show on (green) or off (red)
UPDU’s comes in various outlet configs
No change to UPDU physical size
U-PDU – OUTLET MODULE
Light display for outlets on both sides of the socket for ease
red-off
green-good
Quick display outlet button for each module block
Outlet Module upgrade via Network Key
U-PDU – BRACKETS
Easy fitting into any 19’’ rack solution, vertical or horizontal
Slimline aluminium chassis (50x60mm) for 63A (65x55mm
3P 16A 18PSM
Specification:
[RN3631] UPDU Outlet Switched & Metered 3x16A 18 Combo C13/C15/C19/C21
black
Universal Power Distribution Unit
Fully modular, assembled from the front
Inlet: 3x16A, 11kW, 3m cable 2.5mm2, CEE16/5 6h
Outlets: 18x Combo C13/C15/C19/C21, black background
3 Modules with 6 Combo each, TwyLock compatible
Switched per Outlet (bistable 20A high quality relays)
Metered per Outlet
2x Gbit (PoE) and 1x 100Mbit Ethernet (https, snmp, ssh, syslog, ntp, etc.)
3x AUX Ports for external Sensors
2x High-Speed USB Ports (Type A)
2.4” graphic full-color TFT display (auto-orienting)
Incl. 2 mounting buttons for tool-less mounting
Length 881mm
Weight 0.0000kg, Volume 0.000000m
Origin Switzerland, HS code 8537.1000
