CE801 - Aten - USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m) *NEW*

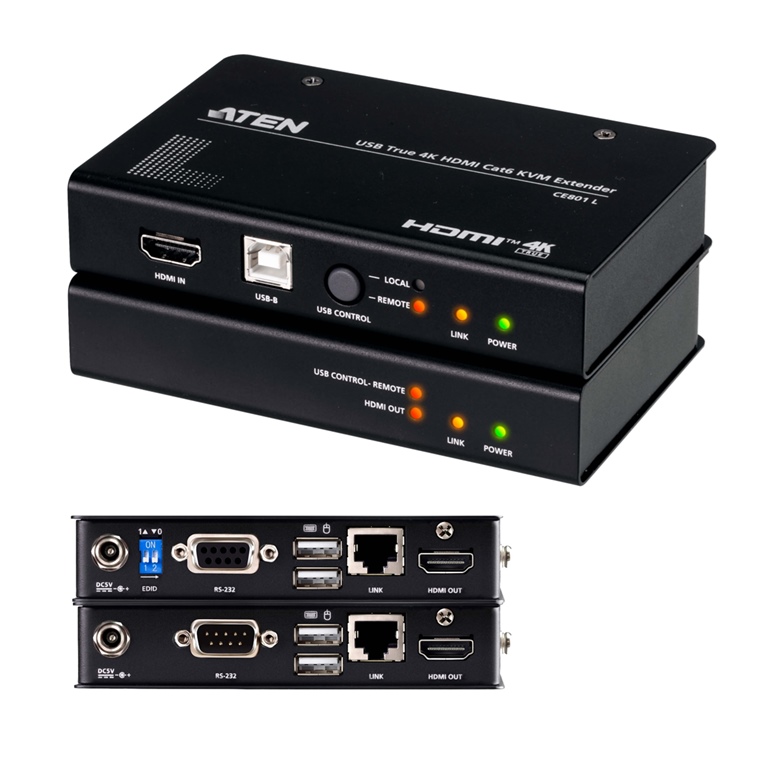

4K CAT6 HDMI KVM Extender (70m)
Description:
CE801 is an extender kit that allows for sharp, life-like True 4K (3840 x 2160 @ 60 Hz 4:4:4) HDMI, RS-232, and USB transmission across 70 m over one single Cat 6 cable. Dual console USB Keyboard / Mouse operation is enabled by the USB control mode pushbutton switching USB console control privilege between the remote and local units. RS-232 extension capability facilitates uninterrupted communication between serialinterfaced devices and equipment, which are crucial in industrial control systems. CE801 is ideal for medium to large scale applications where incredibly sharp and detailed visualization, multisignal extension, and privileged USB control via local / remote console are essential, including control centers, retail shops, factories, medical facilities, and home theaters.
Features:
• Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable
• Long reach mode – 1080p extension up to 100 m
• Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
• Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton
• Supports HDR 10 for enhanced video quality
• Supports wide screen format
• Supports digital audio formats such as 7.1ch Dolby and DTS audio
• Plug-and-play with no software or driver required
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• DC Jack with screw-lock ensures stable and secure connection

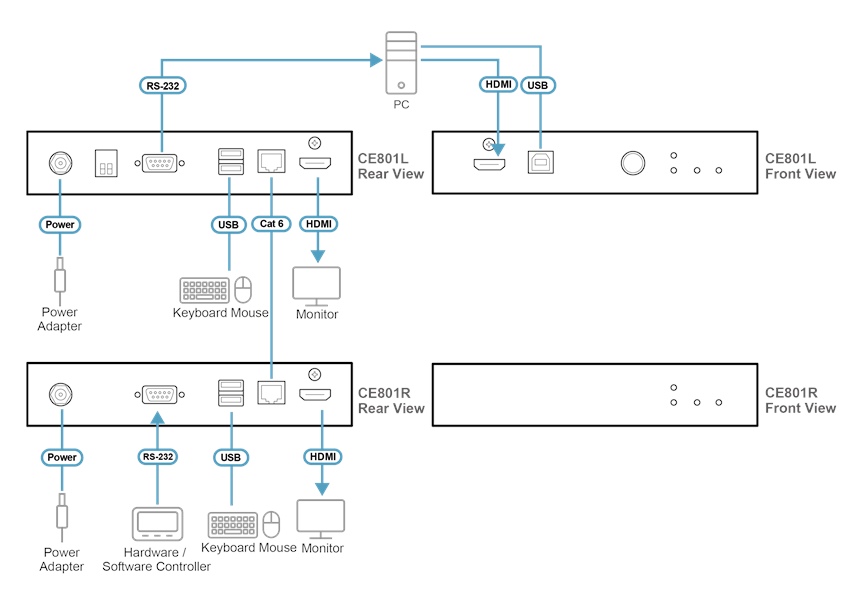

CE801 Diagram
Specification:
Function CE801L CE801R
Connectors
Console Ports 1 x HDMI Female (Black)
2 x USB Type A Female (White)*
* For Keyboard & Mouse only 1 x HDMI Female (Black)
2 x USB Type A Female (White)*
* For Keyboard & Mouse only
KVM Ports 1 x HDMI (Female, Black)
1 x USB Type B (Female, White) N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack with locking 1 x DC Jack with locking
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Video
Compliance HDMI (4K/60Hz); 4K HDR
HDCP2.3 Compatible HDMI (4K/60Hz); 4K HDR
HDCP2.3 Compatible
Max. Resolution 3840 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4)
Max. Resolutions / Distance 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a /ATEN 2L-29330 Cat 6A cable)
1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6A cable with Long reach mode enabled ) 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a/ATEN 2L-29330 Cat 6A cable)
1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6A cable with Long reach mode enabled )
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video N/A 1 (Orange)
Console Status 2 (Orange) 1 (Orange)
Switches
DIP 1 x 2 pin N/A
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
Power Consumption DC5V:2.59W:28BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. DC5V:1.88W:13BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40˚C 0-40˚C
Storage Temperature -20-60˚C -20-60˚C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.32 kg ( 0.7 lb ) 0.31 kg ( 0.68 lb )
Dimensions (L x W x H) 12.80 x 8.21 x 2.50 cm
(5.04 x 3.23 x 0.98 in.) 12.80 x 8.15 x 2.50 cm
(5.04 x 3.21 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Remote HDMI out 640 x 480 @ 60/67/72/75 Hz 1600 x 1200 @ 60 Hz
640 x 480 60 Hz (4:3) 1680 x 1050 @ 60 Hz
480p 60 Hz (4:3)/(16:9) 1920 x 1080 @ 60 Hz
576p 50 Hz (4:3)/(16:9) 720p 50/60 Hz
800 x 600 @ 56/60/72/75 Hz 1080i 50/60 Hz
1024 x 768 @ 60/70/75 Hz 1080p 24/25/30/50/60 Hz
1280 x 800 @ 60 Hz 1080p 60 Hz
1280 x 1024 @ 60/75 Hz 3840 x 2160p 24/25/30 Hz
1400 x 1050 @ 60 Hz 3840 x 2160p 50/60 Hz 4:2:0
1440 x 900 @ 60 Hz
