PX4-5886X-E8K7 Raritan WHITE PX4 Intelligent PDU - 24x C13, 12x HDOT Cx, PX4 PDU Outlet Metered & Switched, 32A, 1PH, 36 outlets (PX-5000 Series) *NEW*

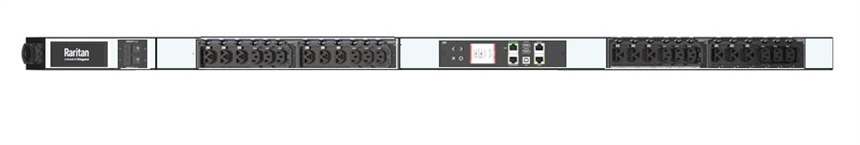

/Raritan White Guide PIC PDU PX4-5886X-E8K7
Description:
This new PX4 in White coloured body casing. This PDU builds the Xerus Technology Platform by adding industry-proven outlet technology and a set of ground-breaking intelligence features. This combination delivers unsurpassed outlet and power density, flexibility, reliability, security, and accurate data collection. Outlet Level Monitoring & Outlet Level Switching
Features:
Benefits:
Real-time visibility, reporting, and alerting of power metrics and event
Best-in-class flexibility to meet and anticipate future requirements
Engineered for mission-critical uptime
Unsurpassed outlet and power density
Easy data collection and export to manage energy utilization
Secure encrypted communication, by default, for all PDU data
Features:
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Metering per input line
Metering per Branch Circuit Breaker
Environmental Sensor Ready
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
IND309 - 32A Input (Single Phase)
Specification:
PX4-5886X-E8K7
Raritan PX4 Intelligent PDU
32A, 1PH, 36 outlets
Oulets: 24x C13, 12x HDOT Cx, PX4 PDU
(PX-5000 Series) *NEW*
Outlet Metered & Switched, 3
Colour: WHITE
