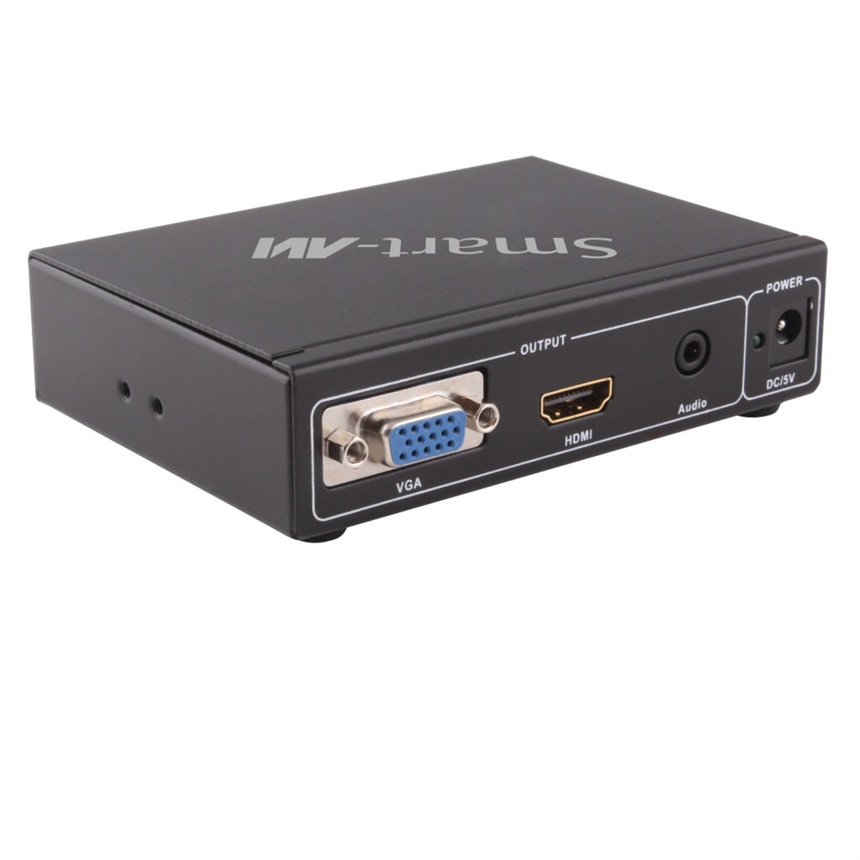

V2V-AV2HV - SmartAVI - HD Video Converter / Composite / SVideo to & Stereo RCA Audio to VGA HDMI & 3.5 Audio
HD Video Converter with Stereo Audio
Description:
The V2V-AV2HV connects to older devices via HDMI, converting video for optimized performance and output picture quality.It is easy to use and enhances audio-visual content automatically, so set-up is simple and hassle-free. With a wide range of device connectivity and refined media output, the V2V-AV2HV is the best way to make the most of aging AV equipment. Installs in seconds, no need of setting.
Features:
• Installs in seconds, no need of setting.
• Auto detect the input resolution without setting.
• Convert YPbPr video and R/L audio into complete HDMI and VGA+stereo audio.
• Supports CVBS video and R/L audio into complete HDMI and VGA+stereo audio.
• Convert S-video video and R/L audio into complete HDMI and VGA+stereo audio.
• Supports highest video resolution up to 1080p
• 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
• 8bit per channel (24bit all channel) deep color.
• Supports OSD( On Screen Display ) menu operation.

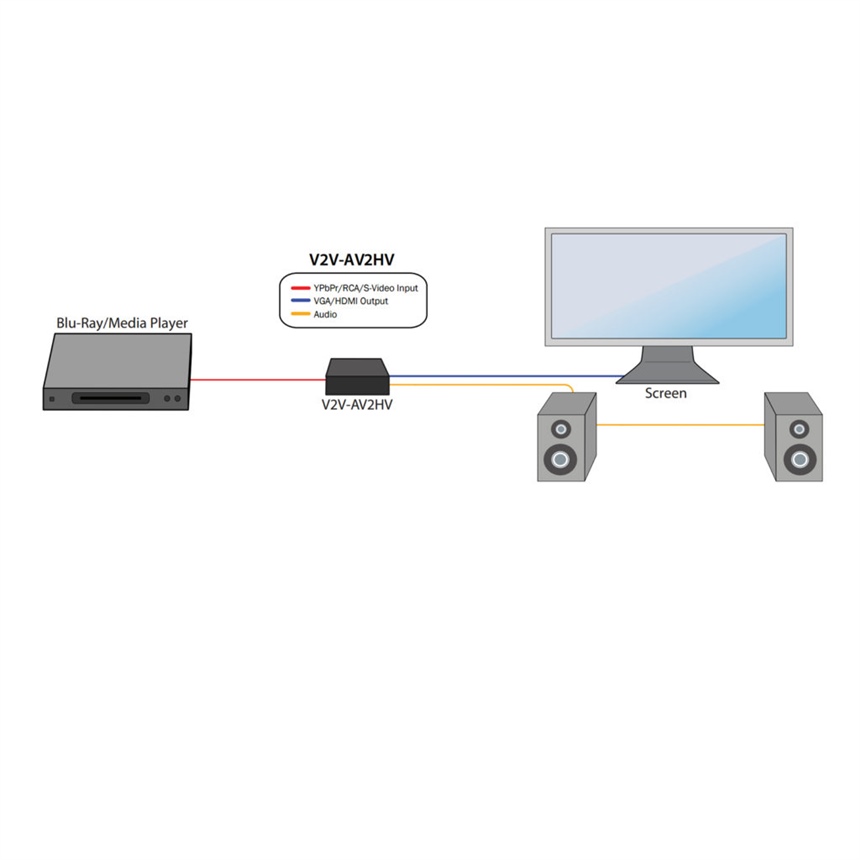

The V2V-AV2HV connects to older devices via HDMI, converting video for optimized performance and output picture quality
Specification:
V2V-AV2HV
HD Video Converter with Stereo Audio [V2V-AV2HV, (PS5VD2A)]
VIDEO
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Input Video / Resolution YPbPr: 480i/576i/480p/576p/720p/1080i/1080p
CVBS: NTSC / PAL S-Video: NTSC / PAL
Output Video / Resolution HDMI: 480i / 576i / 1080i
VGA: Up to 1920×1080
OPERATING FREQUENCY
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 1.65Gpbs/165MHz
OTHER
Operating Temperature 0° to +70° C (32° to +158° F)
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10° to +80° (14° to +176° F)
Storage Humidity 5% to 95 % RH (no condensation)
POWER
External Power Supply 5V DC@2A
MECHANICAL
Dimensions 4.3″ W x 1.1″ H x 3.1″ D
Weight (Net) 225 g (0.5 lbs)
