Z-700 Austin Hughes InfraSolution Z-700 Rack Access Smart Handle SmartCard + NumPad Access with PoE ( Remote Rack Access )

Description:

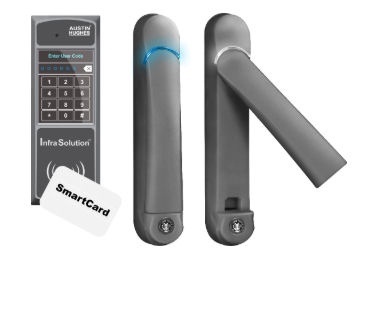

Z-700 Smart Handles To satisfy high level data center security requirements, Austin Hughes developed the rack access solution with alloy swing handles & 2.8" touchscreen control panel. The InfraSolution Z-700 smart handle package provides an innovative yet affordable solution for secure rack access in today’s data centers.

Features:

Handle Features
Z-700P

Intelligent design with patent
Z-700M

Dual security: smartcard+numpad
Rugged alloy swing handle
Sophisticated control panel w/ touchscreen

Promixity 26-bit smartcard compatible with Z-700P
MiFARE 26-bit smartcard compatible with Z-700M

Dual locking system ( electronic and mechanical lock )
Electronic lock released by smartcard+numpad, or software
Rack access status and alarm indication by LED
Individually keyed lock options available
Left side opening standard ( optional right side open )

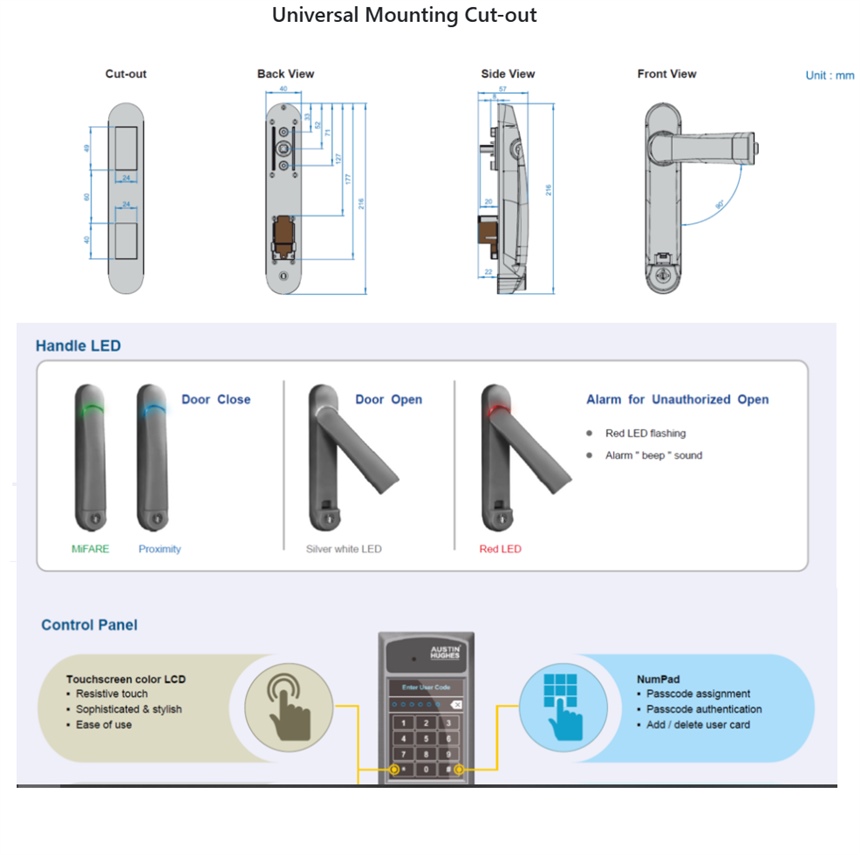

Universal Mounting Cut-out
Most global branded racks have applied a standard handle cut out dimension on the door. To achieve the highest level of interoperability offered in the rack industry, the Alloy Z-700 handle also applies the same mounting dimension. It avoids costly and complicated door customization for the smartcard handle integration.

Universal Mounting Cut-out
Most global branded racks have applied a standard handle cut out dimension on the door. To achieve the highest level of interoperability offered in the rack industry, the Alloy Z-700 handle also applies the same mounting dimension. It avoids costly and complicated door customization for the smartcard handle integration.

Handle Operation
LED color modes on the smartcard handle indicate the lock status clearly. Blue & green LED indicate the locked status of Proximity & MiFARE handle respectively. An authorized unlock is signaled by a silver white flashing LED.. Unauthorized rack access will result in a red flashing LED following with an audible alarm.

All Z-700 packages are supplied with a control panel that includes a 2.8″” touchscreen with NumPad function. Built-in SmartCard sensor is compatible to MiFARE or Proximity SmartCard.

Via NumPad & SmartCard, the InfraSolution S-700 allows two-factor authentication to verify user ID. It ensures dual security for the rack access control

Specification:

Handle Operation
LED color modes on the smartcard handle indicate the lock status clearly. Blue & green LED indicate the locked status of Proximity & MiFARE handle respectively. An authorized unlock is signaled by a silver white flashing LED.. Unauthorized rack access will result in a red flashing LED following with an audible alarm.

All Z-700 packages are supplied with a control panel that includes a 2.8″” touchscreen with NumPad function. Built-in SmartCard sensor is compatible to MiFARE or Proximity SmartCard.

Via NumPad & SmartCard, the InfraSolution S-700 allows two-factor authentication to verify user ID. It ensures dual security for the rack access control

Two Factor authentication - Dual Security
1/Smart Touch
2/Passcode Input
