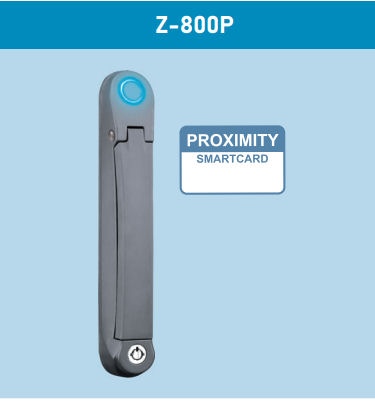

AH-IS-Z800P Austin Hughes Z-800P Smart Handle and SmartCard Door Access ( Rack Access ) Proximity version

Z-800 Handle and Smart Card

Description:

Austin Hughes - Smartcard Handle Proximity SmardCard version InfraSolution Z-800P Rack Access with PoE The patented Z-800 smartcard handle is an intelligent design with universal mounting cut out. Most global branded racks have applied a standard handle cut out dimension on the door. To achieve the highest level of interoperability offered in the rack industry, the Z-800 handle applies the same mounting dimension. It avoids costly and complicated door customization for the smartcard handle integration.

Features:

This is the Proximity SmartCard Version

Available versions Z-800P Proximity or Z-800M MiFARE


Features Z-800P
Intelligent design with patent
Universal mounting design for global branded racks

Proximity 26-bit smartcard compatible



Dual locking system ( electronic and mechanical lock )
Electronic lock released either by smartcard or software
Rack access status and alarm indication by LED
Individually key lock option available
Left side opening standard ( optional right side open )

Rack access status and alarm indication by LED
FCC, CE, ROHS3, REACH

Specification:

This is the Proximity SmartCard Version


Handle Operation
LED color modes on the smartcard handle indicate the lock status clearly.
- Blue & green LED indicate the locked status of Proximity & MiFARE handle respectively
- An authorized unlock is signaled by a silver white flashing LED
-Unauthorized rack access will result in a red flashing LED following with an audible alarm




Use Proximity cards for building access, cashless vending, pull printing? InfraSolution allows these existing smart cards to apply on the rack access system (once the access levels have been attributed by the administrator).

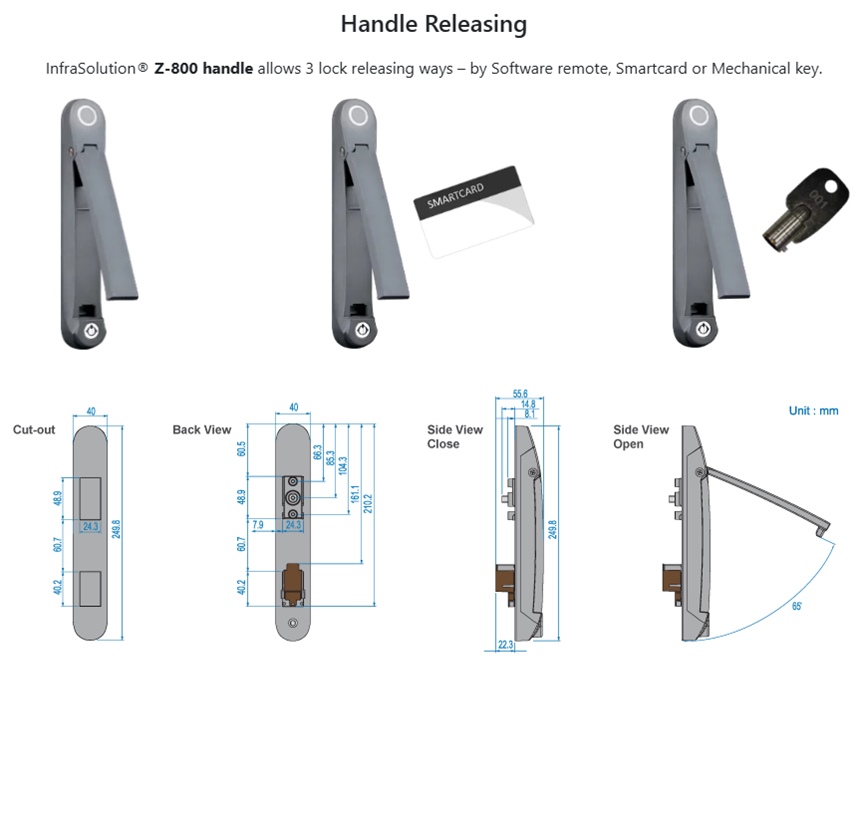

Handle Releasing
InfraSolution® Z-800 handle allows 3 lock releasing ways – by Software remote, Smartcard or Mechanical key.


WORK WITH COMPATIBLE DOOR SENSORS

Door Sensor
InfraSolution® provides high quality, durable and precise door sensors to ensure 100% right door detection.
IR Door Sensor, pair (Z-DIR)
• Light weight with magnetic base
• No custom cutting required on doors
• Mini size ( 33 x 19 x 7 mm )
• 2M cord

Mechanical Door Sensor, pair (Z-DSW)
• Low cost / precise
• Cost efficient integration to new rack
• Size ( 52 x 22.5 x 30.75 mm )
• 2M cord
