SML-KIT-SCO-66-2D Raritan SmartLock STANDARD Kit 2 x Intelligent Door Handles with Integrated Card Reader MIFARE, Module & Sensor Module Kit - x2 active dry contacts - 12V Power
SML-KIT-SCO-66-2D
Description:
Raritan SmartLock STANDARD 2 Door Standard Kit for one rack with sensor / door module and cables Perfect Fit for Enterprise Security Standards The Standard Raritan Smartlock kit is the ideal choice for operations that require a higher level of security but still need a solution that can be easily integrated into existing IT infrastructure. • Greater technical range of electronic locks • Ideal for customers standardizing on a definite type of RFID smartcard • Combination handles with card reader • Comprehensive user tracking and audit trail CABINET-LEVEL ACCESS, CONTROL & COMPLIANCE MADE EASY Raritan’s SmartLock is a networked and intelligent electronic door access and control system designed to deliver audited controlled access to physical sensitive IT assets in the data center’s white space. It is an economic scalable solution that addresses evolving security requirements for IT applications and regulatory compliance from HIPAA, SOX, PCI DSS 3.2, or SSAE 16. VENDOR AGNOSTIC COMPATIBILITY The intelligent door sensor allows you to seamlessly connect, power, operate, and manage electronic handles from popular major access control manufacturers. EASY TO DEPLOY / RETROFIT The system can be easily deployed into an existing IT infrastructure because it doesn’t require complex wiring between cabinets or to any security related equipment. For even faster deployment, the doorhandle adapter is automatically recognized by the connected PDU or Smart Rack Controller and supports standard sized handles and locks to reduce initial setup time. When integrated with Power IQ® DCIM monitoring software, it allows for an indisputable audit trail for simpler compliance and tracking. COST EFFICIENT Easily reduce cost by integrating the SmartLock system directly with Raritan’s PDUs or Smart Rack Controller by eliminating the need for a dedicated IP drop, gateway, security panel, and home run wiring to the panels. The SmartLock system has an open architecture and API integrating with most security, DCIM, or BMS software system, helping to reduce cost by leveraging existing infrastructure. SMART CARD COMPATIBLE The SmartLock system is compatible with proximity card readers that use the following technologies: iClass®, MIFARE®, DESFire®, and HID® Prox.
Features:
KEY FEATURES
-Secures up to 16 cabinets (32 locks front and rear) under a single IP address and is linkable to Raritan PDUs and Smart Rack Controllers
- Delivers Lock Status, Access Control Monitoring, and Alarms
- Remote Lock/Unlock for Defined Users or Groups
- Synchronized Audit Trail and Access Timestamp configurable Relock Time Delay
- Customizable Alerting
- LED Indicator Displays Lock and Access Status
- Event Logging
- Door Position via Included Contact Sensor
- Optional Proximity and Tamper Sensors Available
- Supports Compliance with PCI, SOX,
SSAE 16, HIPAA, and EN 50600
• Greater technical range of electronic locks
• Ideal for customers standardizing on a definite type of RFID smartcard
• Combination handles with card reader
• Comprehensive user tracking and audit trail

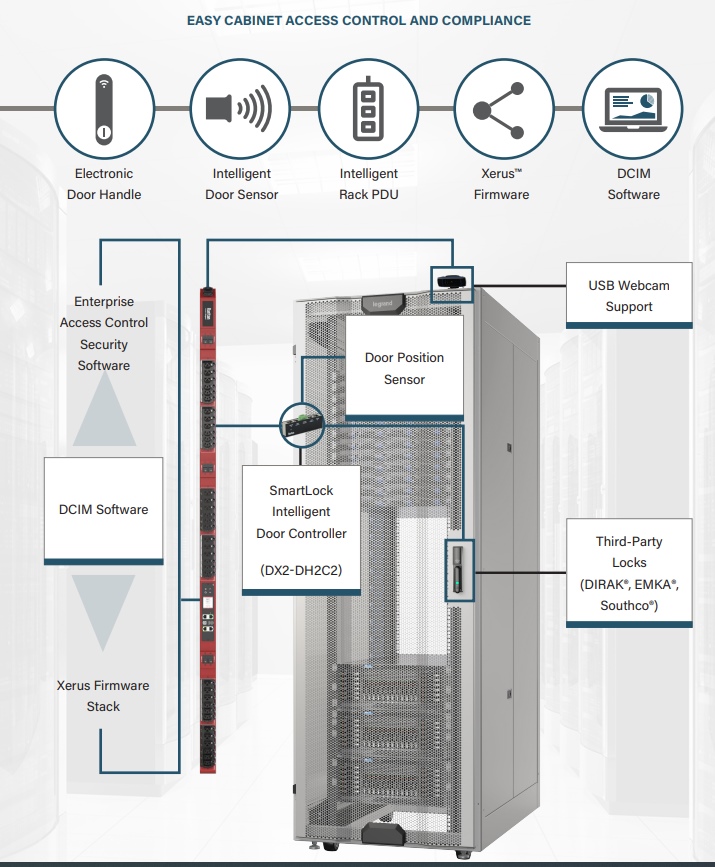

Raritan SML-KIT-SCO SETUP PLAN
PDU, contact sensors and others, or cameras not included in this kit.
Specification:
RT-SML-KIT-SCO-66-2D
Raritan Door Access Kits Including
Single-Low Frequency Reader SML-SCO-H3EM-66 (Two Handles)
SML-KIT-SCO-66-2D (Kit)

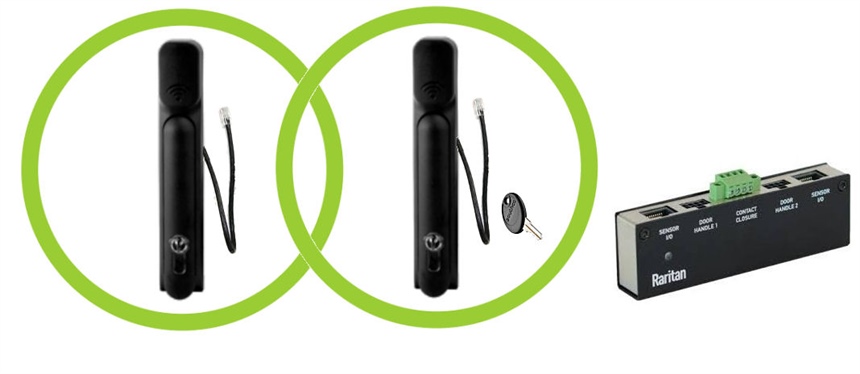

Including ( 2 ) x Southco SML-SCO-H3EM-66 Electronic Swinghandle - High security DIN lock - (1) DX2-DH2C2 Intelligent Door Sensor - Two active dry contacts powered by 12V to support 3rd party door locks.Swinghandle with embedded RFID and RFID Card Reader - 125 kHz Prox
card reader - supports HID 125 kHz Prox card types
Single- High Frequency Reader
Other options:
SML-SCO-H3EM-66
(Single Handle) ƒ SML-KIT-SCO-66-2D (Kit) ƒ SML-KIT-
ƒ EMKA AGENT E ƒ SML-KIT-EKA-AGE-2D
(Kit) ƒ SML-KIT-EKA-AGE-1D
(Kit)
Southco Electronic Swinghandle and RFID Card Reader - 13.56 MHz MIFARE® Classic 4k
MIFARE Plus® 2k MIFARE® DESFire® 4k & iClass UID/integrated card reader:
supports ISO14443 A [13,56 MHz] card types
Dual - High/Low Frequency Reader Ask your Sales Contact Southco Electronic Swinghandle and RFID Card Reader - Dual Frequency reader, 125KHz Prox
card reader - 13.56 MHz MIFARE® Classic 4k MIFARE Plus® 2k MIFARE® DESFire®
4k & iClass UID/integrated card reader
PLEASE NOTE:
Additional parts may still be required to fit the handles to some racks. This is dependant on the door lock cut out which although these are made to the most common some racks may vary and require a template or other adaptor fittings.
Advice is available to deal with any different or difficult rack doors.
