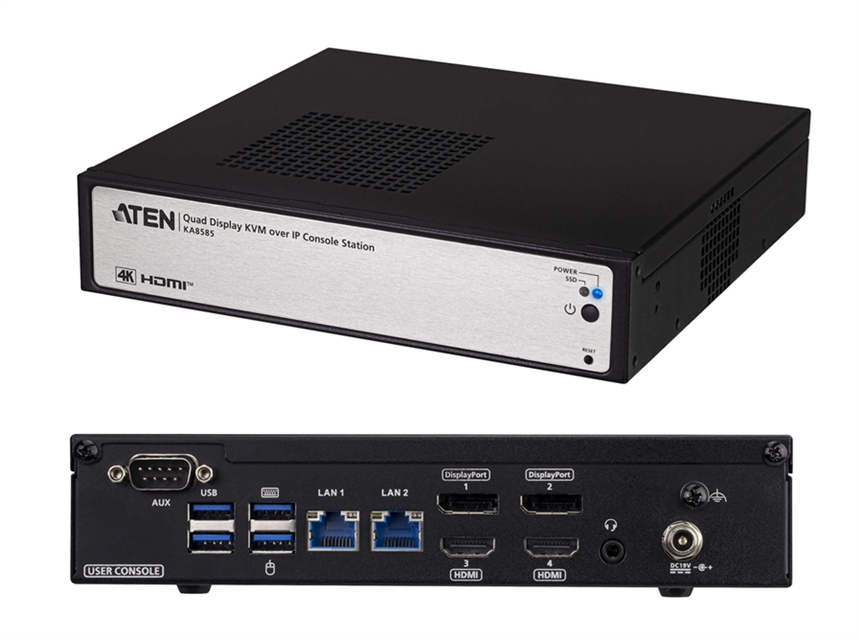

KA8585 - Aten - 4K Quad Display KVM over IP Console Station *NEW*
4K Quad Display KVM over IP Console Station
Description:
The 4K Quad Display KVM over IP Console Station KA8585 is a high-performance, all-digital standalone console with multi-view support that replaces a PC or laptop. It delivers crystal-clear 4K video from KG / CN series all-digital KVM over IP switch without any smearing or color bleeding, enabling users to remotely access, monitor and control all servers connected to multiple KG series KVM over IP OmniBus Gateways and CN series KVM over IP Switches, while providing advanced multi-view capabilities that allow simultaneous monitoring of multiple live sources across four displays. It also supports various data encryption methods to ensure impervious data security. The KA8585 can be deployed anywhere instant access and stringent security are required, making it ideal for applications such as studios, finance, software development and testing, offices, data centers, broadcast stations, control rooms, and network operations centers (NOC).
Features:
A high-performance, all-digital standalone console that replaces a PC or laptop
Delivers crystal-clear 4K video from KG / CN series all-digital KVM over IP switches without any smearing or color bleeding for users to remotely access, monitor and control all servers connected to KVM over IP switches
Impenetrable security against virus threats and impervious data protection
Single sign-on to consolidate the management of multiple KG / CN series KVM over IP switch
Panel Array Mode Live+ real-time monitoring of livestreamed video feeds from all ports in a configurable multiscreen layout which is variable as needed (up to 8 x 8 per screen.)
Features both a Control Mode and an Array Monitoring for each screen, giving users intuitive and flexible options to meet their requirements for specific applications
In Array Monitoring, the KA8585 supports Panel Array Mode Live+, enabling administrators to view up to 64 servers per screen or 256 servers across four displays in real time
Each source appears as a small window within the Control Mode layout, which can be resized and displayed in PoP or PbP mode, or automatically arranged by pressing the auto layout icon
2 HDMI and 2 DisplayPort video outputs enables users to multitask across four 4K displays with a single keyboard and mouse
Supports Boundless Switching allows users to control up to 4 screens by using one set of keyboard & mouse
Extended desktop supports extended display for remotely connected PCs on the four screens of KA8585
GUI with multi-language interface

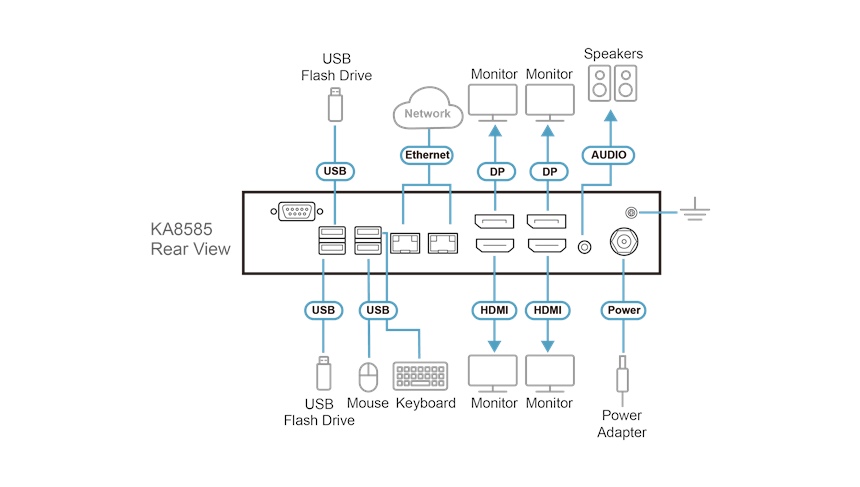

KA8585 Diagram
Specification:
Package Contents
1 x KA8585 Quad Display KVM over IP Console Station
1 x power adapter
1 x user instructions
Connectors
Console Ports 4 x USB Type A Female (Blue)
2 x DisplayPort Female (Black)
2 x HDMI Female (Black)
1 x Audio line out Jack (Black)
1 x DB-9 Male (Black)
Power 1 x Lockable DC Jack (Black)
LAN Ports 2 x RJ-45 (Blue) up to 2.5G
Pushbuttons
Pushbuttons 1 x Power (Black)
1 x Reset (Black)
LEDs
Power 1 (Blue)
Storage 1 (Orange)
Power Consumption DC19V:33W:420BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Video Resolution Up to 4 * 4096 x 2160 @ 60Hz
Latency < 50ms
Environmental
Operating Temperature -1050°C
Storage Temperature -4085°C
Humidity 1090% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.34 kg ( 2.95 lb )
Dimensions (L x W x H) 20.00 x 19.00 x 4.18 cm
(7.87 x 7.48 x 1.65 in.)
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
