PX3-5145R Raritan 1PH, 120V AC, 15A (12A rated); 8 outlets: 8x NEMA 5-20R; plug: NEMA 5-15P (Rear feed), 1.4kVA; Outlet Metered/Switched, 1U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections

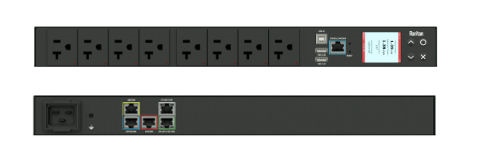

PX3-5145R Front and Rear
Description:
Raritan 1PH, 120V AC, 15A (12A rated); 8 outlets: 8x NEMA 5-20R; plug: NEMA 5-15P (Rear feed), 1.4kVA; Outlet Metered/Switched, 1U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Features:
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes
Metering per Branch Circuit Breaker
No
Metering per Output Receptacle
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
View all sensors.
PDU Linking
Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.
Cascading
Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specification:
NEMA Connections PDU
Made for USA Market with US UL approvals
INPUT
Input Plug NEMA 5-15P
Nominal Voltage 120V
Maximum Input Current 15A
Rated Input Current 12A
Power Capacity 1.4kVA
Cord Length 10ft/3m
This unit has a C20 Plug for the connection of the power input cable
OUTPUT
Nominal Voltage 100 - 120V
Receptacles (Output Connections) (8) NEMA 520R
Overload Protection 0
Physical
Dimensions (WxDxH) 440mm x 183mm x 44mm
Unit Weight 6 lbs
Shipping Weight 6.61386 lbs
Shipping Dimensions (HxDxW) 567 x 415 x 308 mm
Mounting RACK-KIT-DPX-1U
Environmental
Tender Text/Bid Submittal Text
Monitored and switched rack power distribution unit (1U [horizontal], 1.4kVA, 8 outlets). INPUT: 120v, 15a - NEMA 5-15P plug (2P3W); OUTPUT: 8@ 5-20R outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Max Dimensions 440mm x 183mm x 44mm (17.3in x 7.2in x 1.7in). Max Weight 3.5 kg. Maximum ambient temperature 60C at full load.
Vendor: Raritan; Part Number: PX3-5145R
Operating Temperature/Environment 60 C
Operating Relative Humidity 85%
Operating Elevation 0-6000ft
Conformance
Regulatory Approvals
UL
Warranty Standard 2 years manufacturer warranty
