PX3-5453R Raritan 1PH, 120V AC, 30A (24A rated); 20 outlets: 20x NEMA 5-20R; plug: NEMA L5-30P (Rear feed), 2.9kVA; Outlet Metered/Switched, 2U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections

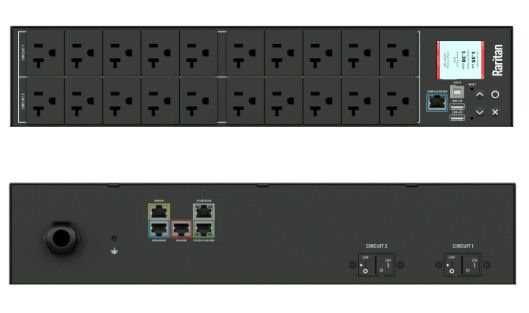

PX3-5453R NEMA front and rear view
Description:
Raritan 1PH, 120V AC, 30A (24A rated); 20 outlets: 20x NEMA 5-20R; plug: NEMA L5-30P (Rear feed), 2.9kVA; Outlet Metered/Switched, 2U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Features:
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes
Metering per Branch Circuit Breaker
No
Metering per Output Receptacle
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
PDU Linking
Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.
Cascading
Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specification:
Made for USA Market with US UL Approvals
INPUT
Input
Input Plug NEMA L5-30P
Nominal Voltage 120V
Maximum Input Current 30A
Rated Input Current 24A
Power Capacity 2.9kVA
Cord Length 10ft/3m
OUTPUT
Output Nominal Voltage 240V
Receptacles (Output Connections) (20) NEMA 520R
Overload Protection 2
Physical
Dimensions (WxDxH)
TBD
Unit Weight
15 lbs
Shipping Weight
23.81 lbs
Shipping Dimensions (HxDxW)
560 x 552 x 284 mm
Mounting
RACK-KIT-PX-2U
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
Monitored and switched rack power distribution unit (2U [horizontal], 2.9kVA, 20 outlets). INPUT: 120v, 30a - NEMA L5-30P plug (2P3W); OUTPUT: 20@ 5-20R outlets; on 2@ 1-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 440mm x 293mm x 88mm (17.3in x 11.5in x 3.5in). Max Weight 6.8 kg. Maximum ambient temperature 60C at full load.
Vendor: Raritan; Part Number: PX3-5453R
