B1104-XXXXXX-XXXXXX Minkels-Legrand/ Minkels Nexpand Server and Network Cabinets White /

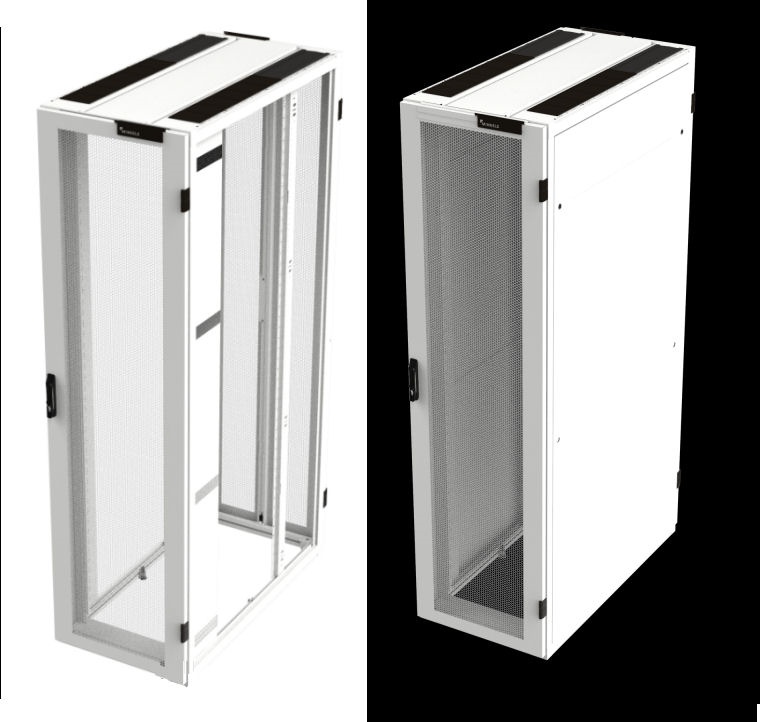

Minkels/pics/Minkels Nexpand Server Cabinet White
without and with door versions
Description:
STANDARD SERVER CABINET General: A standard server cabinet should be able to be used as a universal 19”- cabinet suitable for housing all common IT-equipment (server, storage, connectivity equipment). Applicable Standards: ▪ IEC 60297-3-100 or EIA-310-D/E ▪ IEC 60950 or ISO/IEC 30129 or EN 50310 ▪ IEC 60529 (IP) and IEC 62262 (IK) ▪ EN 50600-2-4 ▪ IEC 61587-1 ▪ UL94 ▪ REACH, RoHS, SCIP Available Sizes: ▪ Width: 600, 800mm. ▪ Depth: 800, 1000, 1200mm. ▪ Height: 1200, 1978, 2200, 2422mm. ▪ Available equipment space: 24, 42, 47, 52U. Finishing: ▪ Powder coated Black RAL 9005 fine structure or Signal White RAL 9003 fine structure. Cabinet Load Capacity: ▪ Static load capacity of 1500 kg. Nominal load NL5 = 1500 kg according IEC 61587-1 Cabinet Stiffness: ▪ The cabinet complies to ST1 according IEC 61587-1 Cabinet impact resistance: ▪ The cabinet complies to IK07 according IEC 61587-1 / IEC 62262 Cabinet climatic and atmospheric resistance: ▪ The cabinet complies to class A1 and C1 according IEC 61587-1 Cabinet earthing specification: ▪ The cabinet complies to the earthing requirements of less than 0,1Ω between all metallic components according IEC 61587-1 without the use of separate earthing cables except for the door earthing cables. Cooling principle: ▪ Cross flow with 80% perforated doors at the front and the rear of the cabinet.
Features:
General & Key features can include:
Flexibility and Modularity
The interior features an aluminium frame with T-slots and threaded mounting rails, allowing accessories and components to be adjusted infinitely in all three dimensions (width, depth, and height).
Most accessories and components can be mounted or removed from the inside of the cabinet, even when units are bayed together.
The modular roof design provides ample space for top-of-cabinet infrastructure, including power and data cabling, with easy-to-use, full-depth cut-outs and modular inserts.
Airflow and Energy Efficiency
The design focuses on optimising energy efficiency by ensuring best-in-class air tightness.
Various airflow management packages and accessories (such as sealing strips and plates) are available to minimize air leakage and recirculation, effectively separating hot and cold airflows.
Security
Nexpand offers high-level access security with support for both standard mechanical locks and intelligent smart locks.
Smart locks enable remote monitoring of access and environmental factors like temperature and humidity through integrated sensors.
The locking mechanisms and associated cabling are integrated into the door to prevent damage or tampering.
Solid Construction and Design
The cabinets feature a light but solid aluminium frame with a high static load capacity of up to 1500 kg (approx. 3,500 lbs), ensuring durability and reliability.
Doors are reversible (left or right hinged) and can open wide (up to 165° for bayed, 260° for stand-alone cabinets) for easy access during installation and maintenance.
Cable Management
The design provides ample space and dedicated pathways for high-density cabling, including vertical cable ducts and top-of-cabinet options for power distribution units (PDUs) and data cables.
Cable management accessories can be flexibly mounted at any depth without tools, using an O-ring configuration, to keep cabling organized and improve airflow.
Multiple extra features dependant on the Model spcification chosen//
Specification:
Models options:
Minkels Nexpand cabinets
Nexpand Server cabinet 600x1200x42U (1978 mm) White / Server cabinet white W600 D1200 42U, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-061242-900889
Nexpand Server cabinet 600x1200x42U (1978 mm) White / Server cabinet white W600 D1200 42U, Side Panels, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-061242-900894
Nexpand Server cabinet 600x1200x47U (2200 mm) White / Server cabinet white W600 D1200 47U, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-061247-901969
Nexpand Server cabinet 600x1200x47U (2200 mm) White / Server cabinet white W600 D1200 47U, Side Panels, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-061247-901974
Nexpand Server cabinet 600x1200x52U (2422 mm) White / Server cabinet white W600 D1200 52U, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-061252-903049
Nexpand Server cabinet 600x1200x52U (2422 mm) White / Server cabinet white W600 D1200 52U, Side Panels, Airflow, Double cable tray, FD S80% RD D80%.
Ref. B1104-061252-903054
Nexpand Server cabinet 800x1000x47U (2200 mm) White / Server cabinet white W800 D1000 47U, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-081047-913849
Nexpand Server cabinet 800x1000x47U (2200 mm) White / Server cabinet white W800 D1000 47U, Side Panels, Airflow, Double cable tray, FD S80% RD D80%.
Ref. B1104-081047-913854
Nexpand Server cabinet 800x1200x42U (1978 mm) White / Server cabinet white W800 D1200 42U, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-081242-907369
Nexpand Server cabinet 800x1200x42U (1978 mm) White / Server cabinet white W800 D1200 42U, Side Panels, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-081242-907374
Nexpand Network cabinet 800x1200x42U (1978 mm) White / Network cabinet white W800 D1200 42U, Airflow, Cable fingers, Double cable tray, FD S80% RD D80%
Ref. B1104-081242-907477
Nexpand Network cabinet 800x1200x42U (1978 mm) White / Network cabinet white W800 D1200 42U, Side panels, Airflow, Cable fingers, Double cable tray, FD S80% RD D80%
Ref. B1104-081242-907482
Nexpand Server cabinet 800x1200x47U (2200 mm) White / Server cabinet white W800 D1200 47U, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-081247-908449
Nexpand Server cabinet 800x1200x47U (2200 mm) White / Server cabinet white W800 D1200 47U, Side Panels, Airflow, Double cable tray, FD S80% RD D80%.
Ref. B1104-081247-908454
Nexpand Network cabinet 800x1200x47U (2200 mm) White / Network cabinet white W800 D1200 47U, Airflow, Cable fingers, Double cable tray, FD S80% RD D80%.
Ref. B1104-081247-908557
Nexpand Network cabinet 800x1200x47U (2200 mm) White / Network cabinet white W800 D1200 47U, Side panels, Airflow, Cable fingers, Double cable tray, FD S80% RD D80%
Ref. B1104-081247-908562
Nexpand Server cabinet 800x1200x52U (2422 mm) White / Server cabinet white W800 D1200 52U, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-081252-909529
Nexpand Server cabinet 800x1200x52U (2422 mm) White / Server cabinet white W800 D1200 52U, Side Panels, Airflow, Double cable tray, FD S80% RD D80%
Ref. B1104-081252-909534
Nexpand Network cabinet 800x1200x52U (2422 mm) White / Network cabinet white W800 D1200 52U, Airflow, Cable fingers, Double cable tray, FD S80% RD D80%
Ref. B1104-081252-909637
Nexpand Network cabinet 800x1200x52U (2422 mm) White / Network cabinet white W800 D1200 52U, Side panels, Airflow, Cable fingers, Double cable tray, FD S80% RD D80%
Ref. B1104-081252-909642
