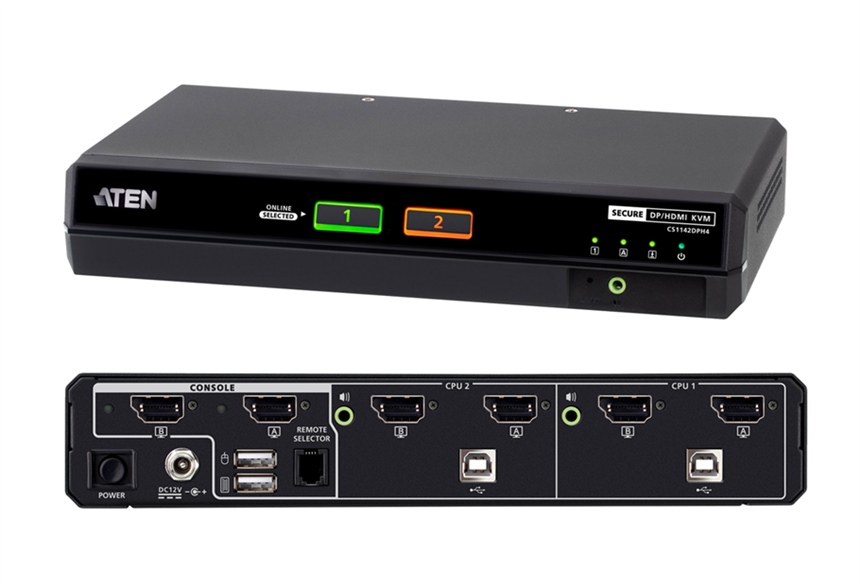

CS1142DPH4 - Aten - 2 Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch (PSD PP v4.0 Compliant) *NEW*
5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch
Description:
ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP). ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
Features:
• Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
• Superior ultra-high video quality – up to 5K (5120 x 2880 @ 60Hz)
• DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces (both PC and Console sides)
• Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Universal Secure KVM Switch series inoperable when physical tampering is detected
• Production in Taiwan

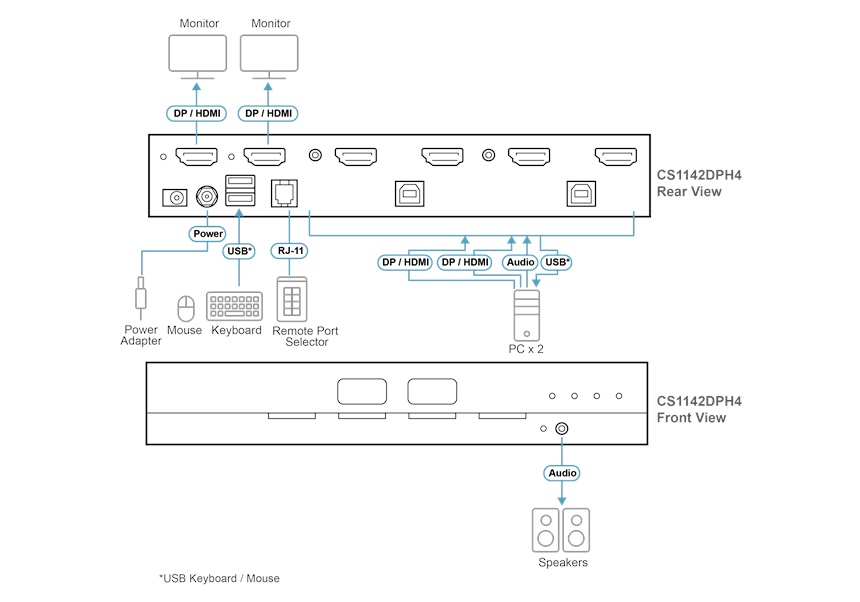

CS1142DPH4 Diagram
Specification:
Package Contents
1x CS1142DPH4 2-Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch
1x power adapter
1x foot pad set
1x port name labels
1x HDMI cable lock set
1x user instructions
Computer Connections 2
Port Selection Pushbutton, Remote Port Selector
Connectors
Console Ports 2 x DP/HDMI Female (Black)
2 x USB Type-A Female (White)
1 x Mini Stereo Jack Female (Green; 1 x front)
KVM Ports 4 x DP/HDMI Female (Black)
2 x USB Type-B Female (White)
2 x Mini Stereo Jack Female (Green)
Power 1 x DC Jack
Remote Port Selector 1 x RJ-11 (Black; 1 x rear)
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 1 x Pushbutton
LEDs
Power 1 (Green)
Online / Selected (KVM Port) 2 (Orange / Green)
Video 2 (Green)
Key Lock 3 (Green)
Emulation
Keyboard / Mouse USB
Video Max. 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz
Maximum Input Power Rating 100–240V~; 50-60 Hz; 1.2A
Power Consumption DC12V:19.56W:142BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.21 kg ( 2.67 lb )
Dimensions (L x W x H) 24.50 x 14.36 x 4.30 cm
(9.65 x 5.65 x 1.69 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
