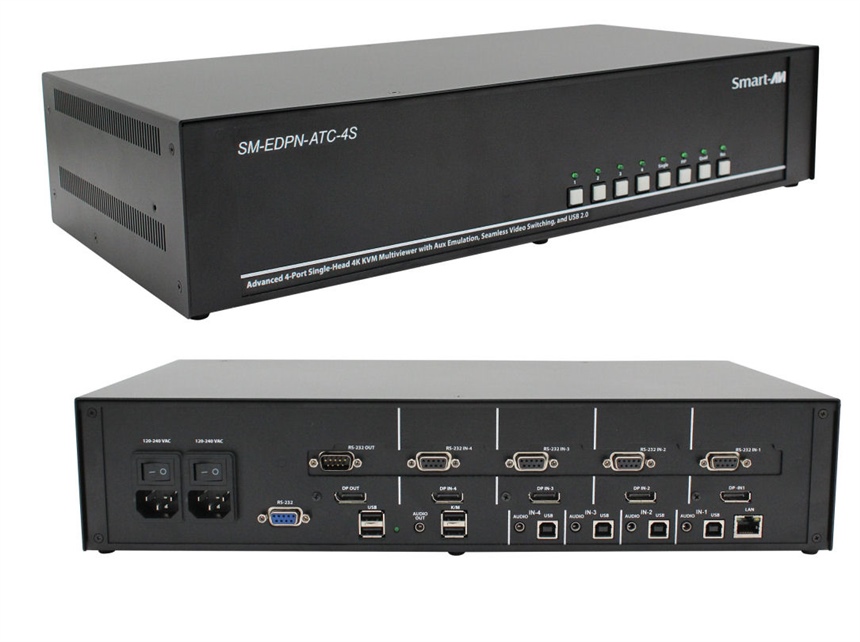

SM-EDPN-ATC-4S-S High-performance 4K Single-Head-RS232-ReduntantPS Seamless 4Port DisplayPort KVM switch - purpose-built for mission-critical KVM and AV control ( AIR TRAFFIC CONTROL KVM)

SM-EDPN-ATC-4S-S

Description:

EDPN-ATC Series, a family of high-performance Seamless KVM solutions purpose-built for mission-critical environments where precision, reliability, and continuous operation are essential. The SM-EDPN-ATC series is engineered for 24/7 air traffic control environments where Seamless real-time responsiveness is critical. It allows controllers to manage multiple systems—such as radar, flight data, surveillance, and weather platforms—from a single interface with zero disruption. By centralizing IT hardware outside the control room, the EDPN-ATC reduces heat, noise, and clutter while maintaining secure, real-time access to all connected systems, including those requiring RS-232 communication. Seamless Single-Head DisplayPort KVM Switch for Air Traffic Control Designed for 24/7 operational reliability, this high-performance KVM solution enables air traffic controllers to securely manage multiple critical systems including radar, flight data, surveillance, and weather platforms from a single, unified workstation with specialized ATC resolutions such 2048×2048 @ 60hz. By centralizing IT hardware outside the control room, the system reduces heat, noise, and clutter, while delivering real-time, zero-disruption access to all connected system that require RS-232. Video code:

Features:

Seamless 4-Port | Single-Head | KVM Switch |Multiviewer| 3840×2160@60 Hz | RS232 | Redundant PS


Core EDPN-PRO Series Features
• True Seamless Switching & Ultra-Low Latency: No video blanking or re-sync for real-time decision-making
• Specialized Resolution Support: Including 2048 × 2048 @ 60Hz and 4K60 UHD with full frame integrity
• Integrated Multiviewer: Monitor multiple systems simultaneously
• EDID Video Emulation: Maintains consistent display layouts during switching
• Expanded USB 2.0 Support: Connect peripherals such as printers, scanners, and web cameras
• Asynchronous Switching: Independent control of USB/audio and video across channels
ATC-Specific Enhancements:
• Full RS-232 Switching: Supports legacy serial-based systems
• Redundant Power Inputs: Dual lockable DC inputs for continuous, uninterrupted operation


-Supports specialized ATC resolutions such as 2048×2048.
-EDID Video Emulation ensures monitor layout stays consistent when switching.
-Secure architecture for safety-critical environments.
-USB keyboard and mouse emulation.
-Additional USB 2.0 device support (printers, cameras, etc.).
-Stereo audio support.
-Front panel buttons for manual port selection.
-Hot-key support for quick switching.
-RS-232 serial control.
-Asynchronous switching of USB/audio and video.
-Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc…

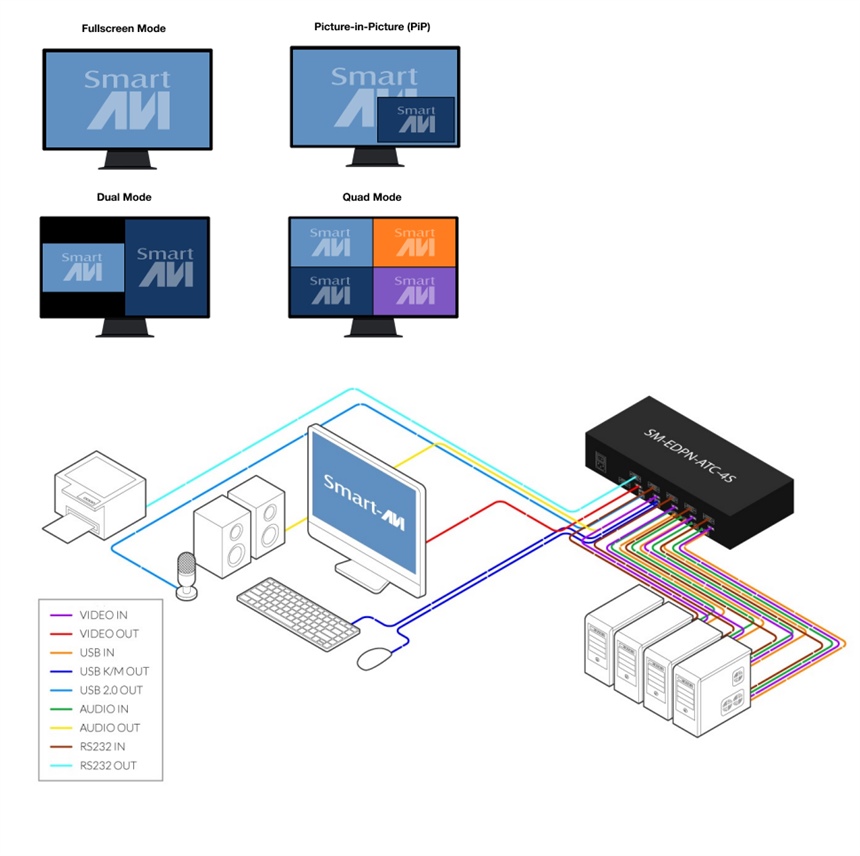

SM-EDPN-ATC-4S setup

Specification:

SM-EDPN-ATC-4S
4-Port Single-Head 4k KVM Multiviewer
[Includes: SM-EDPN-ATC-4S, CCPWR06]


VIDEO
Format DisplayPort1.2
Maximum Pixel Clock 594 MHz
Input Interface SM-EDPN-ATC-4S (8) DisplayPort 20-pin (female)
Output Interface SM-EDPN-ATC-4S (2) DisplayPort 20-pin (female)
Resolution & Refresh Rate 3840 x 2160 @ 60 Hz
Color Capability 24-bit True Color (8-bits per channel)
DDC 5 volts p-p (TTL)
Chroma Sampling 4:4:4 (full color), 4:2:2, or 4:2:0
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
Data Rate 1.65 Gbps per color
Bandwidth (HBR2) Up to 21.6 Gbps total (5.4 Gbps per lane)
EDID Support Full emulation & preloaded profiles

Control
Front Panel Push Buttons with LED Indicators
Hot Keys Via Keyboard

RS-232
Connectors 4 DB9 female. One male
Speed Up to 115,000 bps
RS-232 Support Full Duplex

USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (4) USB Type B (female)
Output Interface (2) USB Type A (female) for K/M emulation; (2) for USB 2.0 Transparent
Emulation Keyboard and Mouse

Audio
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB

Other
Power Adapter External 120-240 VAC, Internal PSU
Dimensions 17.0” W × 2.7” H × 8.69” D
Weight 4.4 lbs
Approvals UL, CE, ROHS Compliant
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)



SM-EDPN-ATC-4S

4-Port Single-Head 4k KVM Multiviewer
[Includes: SM-EDPN-ATC-4S, CCPWR06]
