SM-EDPN-PRO-4D-S High-performance 4K Dual-Head Seamless 4Port DisplayPort KVM switch - purpose-built for mission-critical KVM and AV control
SM-EDPN-PRO-4D-S
Description:
EDPN-PRO Series, a family of high-performance Seamless KVM solutions purpose-built for mission-critical environments where precision, reliability, and continuous operation are essential. The SM-EDPN-Pro is specifically designed for diagnostic workstations and medical reading rooms. It enables radiologists to securely control multiple imaging systems—including PACS, RIS, VNA, CT, MRI, ultrasound, and advanced visualization servers—from a single, unified workstation without compromising image quality or workflow continuity. With support for specialized medical imaging resolutions and Seamless switching, the SM-EDPN-Pro ensures precise image reproduction and uninterrupted operation in even the most demanding clinical environments.
Features:
Core EDPN-PRO Series Features
• True Seamless Switching & Ultra-Low Latency: No video blanking or re-sync for real-time decision-making
• Specialized Resolution Support: Including 2048 × 2048 @ 60Hz and 4K60 UHD with full frame integrity
• Integrated Multiviewer: Monitor multiple systems simultaneously
• EDID Video Emulation: Maintains consistent display layouts during switching
• Expanded USB 2.0 Support: Connect peripherals such as printers, scanners, and web cameras
• Asynchronous Switching: Independent control of USB/audio and video across channels
-Supports specialized ATC resolutions such as 2048×2048.
-EDID Video Emulation ensures monitor layout stays consistent when switching.
-Secure architecture for safety-critical environments.
-USB keyboard and mouse emulation.
-Additional USB 2.0 device support (printers, cameras, etc.).
-Stereo audio support.
-Front panel buttons for manual port selection.
-Hot-key support for quick switching.
-RS-232 serial control.
-Asynchronous switching of USB/audio and video.
-Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc…
Doc File

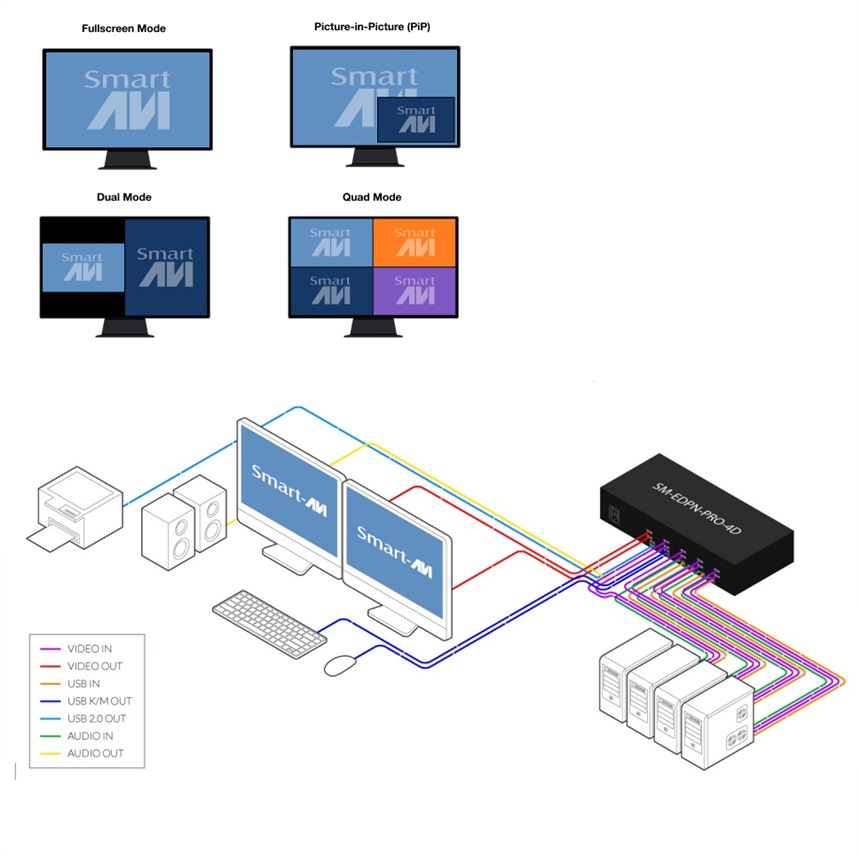

SM-EDPN-PRO-4D-S setup PIC
Specification:

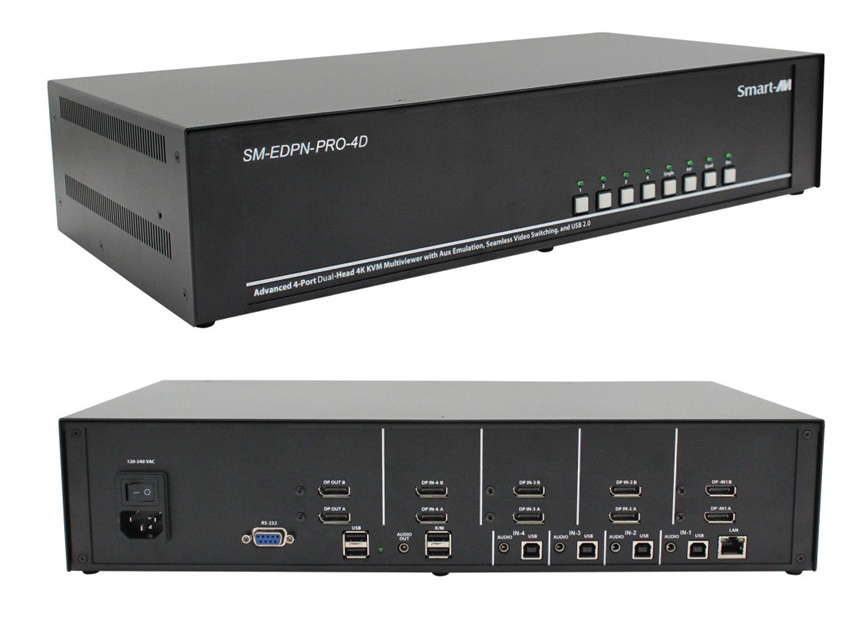

SM-EDPN-PRO-4D
4-Port Dual-Head 4k KVM Multiviewer
[Includes: SM-EDPN-PRO-4D, PS12VD3A]
Video
Format DisplayPort1.2
Maximum Pixel Clock 594 MHz
Input Interface SM-EDPN-PRO-4D (8) DisplayPort 20-pin (female)
Output Interface SM-EDPN-PRO-4D (2) DisplayPort 20-pin (female)
Resolution 3840 x 2160 @ 60 Hz
Color Mode 24-bit
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
Data Rate 1.65 Gbps per color
EDID Support Full emulation & preloaded profiles
Control
Front Panel Push Buttons with LED Indicators
LAN RJ45
Hot Keys Via Keyboard
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (4) USB Type B (female)
Output Interface (2) USB Type A (female) for K/M emulation; (2) for USB 2.0 Transparent
Audio
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
Other
Power Adapter External 120-240 VAC, Internal PSU
Dimensions 17.0” W × 2.7” H × 8.69” D
Weight 4.4 lbs
Approvals UL, CE, ROHS Compliant
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)
Emulation Keyboard and Mouse
