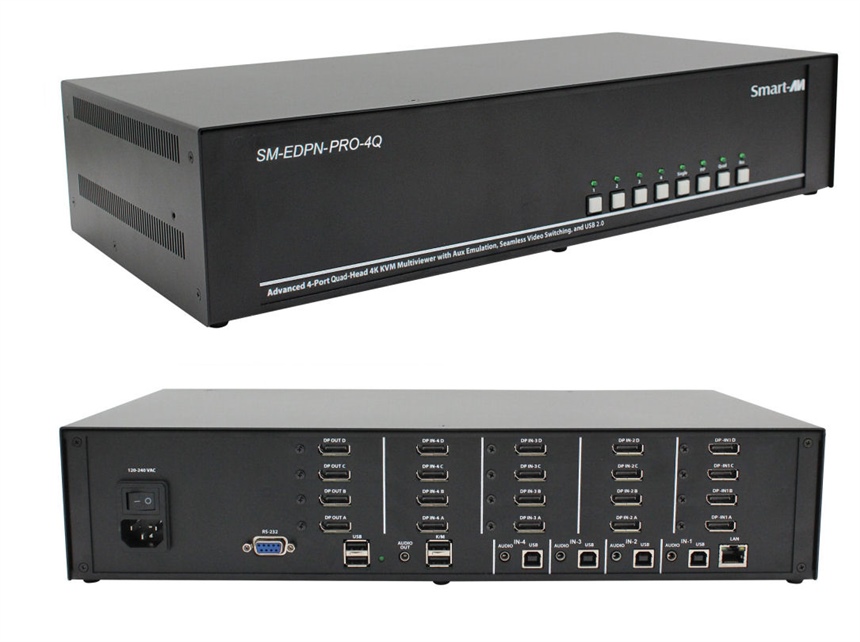

SM-EDPN-PRO-4Q-S High-performance 4K Quad-Head Seamless 4Port DisplayPort KVM switch - purpose-built for mission-critical KVM and AV control
SM-EDPN-PRO-4Q-S
Description:
EDPN-PRO Series, a family of high-performance Seamless KVM solutions purpose-built for mission-critical environments where precision, reliability, and continuous operation are essential. The SM-EDPN-Pro is specifically designed for diagnostic workstations and medical reading rooms. It enables radiologists to securely control multiple imaging systems—including PACS, RIS, VNA, CT, MRI, ultrasound, and advanced visualization servers—from a single, unified workstation without compromising image quality or workflow continuity. With support for specialized medical imaging resolutions and Seamless switching, the SM-EDPN-Pro ensures precise image reproduction and uninterrupted operation in even the most demanding clinical environments.
Features:
Core EDPN-PRO Series Features
• True Seamless Switching & Ultra-Low Latency: No video blanking or re-sync for real-time decision-making
• Specialized Resolution Support: Including 2048 × 2048 @ 60Hz and 4K60 UHD with full frame integrity
• Integrated Multiviewer: Monitor multiple systems simultaneously
• EDID Video Emulation: Maintains consistent display layouts during switching
• Expanded USB 2.0 Support: Connect peripherals such as printers, scanners, and web cameras
• Asynchronous Switching: Independent control of USB/audio and video across channels
-Supports specialized ATC resolutions such as 2048×2048.
-EDID Video Emulation ensures monitor layout stays consistent when switching.
-Secure architecture for safety-critical environments.
-USB keyboard and mouse emulation.
-Additional USB 2.0 device support (printers, cameras, etc.).
-Stereo audio support.
-Front panel buttons for manual port selection.
-Hot-key support for quick switching.
-RS-232 serial control.
-Asynchronous switching of USB/audio and video.
-Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc…
Doc File

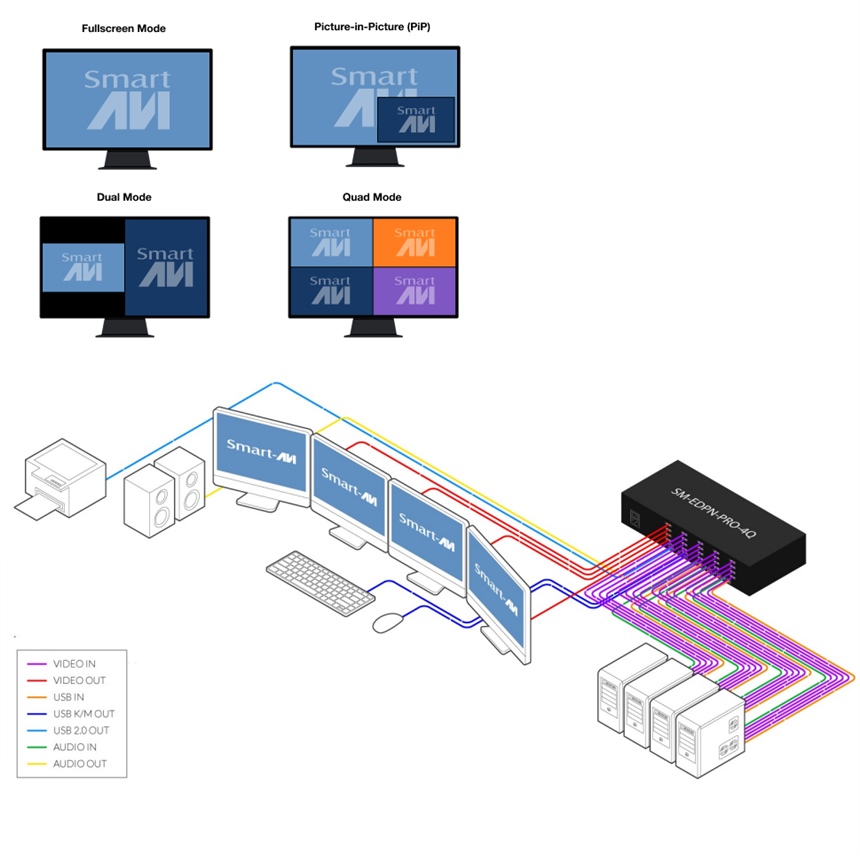

SM-EDPN-PRO-4Q-S setup
Specification:
SM-EDPN-PRO-4Q
4-Port Dual-Head 4k KVM Multiviewer
[Includes: SM-EDPN-PRO-4Q, PS12VD3A]
Video
Format DisplayPort1.2
Maximum Pixel Clock 594 MHz
Input Interface SM-EDPN-PRO-4Q (16) DisplayPort 20-pin (female)
Output Interface SM-EDPN-PRO-4Q (4) DisplayPort 20-pin (female)
Resolution 3840 x 2160 @ 60 Hz
Color Mode 24-bit
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
Data Rate 1.65 Gbps per color
EDID Support Full emulation & preloaded profiles
Audio
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
Control
Front Panel Push Buttons with LED Indicators
LAN RJ45
Hot Keys Via Keyboard
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (4) USB Type B (female)
Output Interface (2) USB Type A (female) for K/M emulation; (2) for USB 2.0 Transparent
Other
Power Adapter External 120-240 VAC, Internal PSU
Dimensions 17.0” W × 2.7” H × 8.69” D
Weight 4.4 lbs
Approvals UL, CE, ROHS Compliant
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)
Emulation Keyboard and Mouse
