CS1942DPA - ATEN - 2 Port USB 3.0 8K DisplayPort Dual-Display KVM Switch (Cables included) Displayport KVM *NEW*
2 Port DisplayPort KVM
Description:
The CS1942DPA is a 2-port KVM switch that empowers you to switch between projects with ease on a 2-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of two DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1942DPA is definitely your key to a workspace transformation.

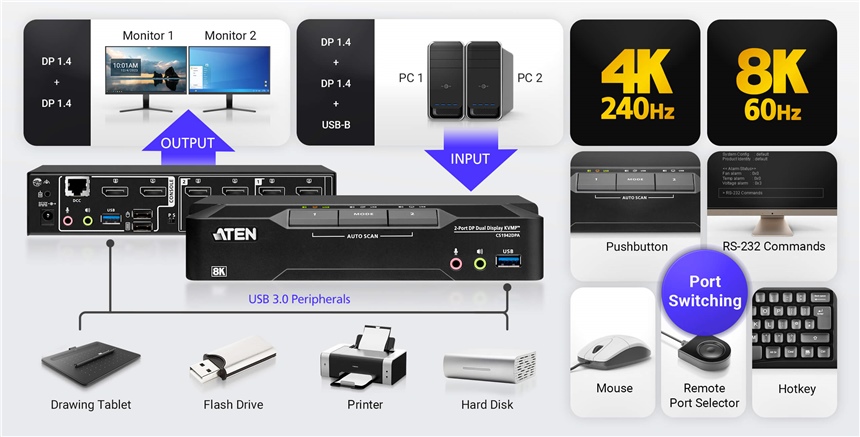

Features:
Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.
• Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 240 Hz
• Daisy-chainable quad-display control connecting two CS1942DPAs to manage up to two PCs and four displays with one keyboard and mouse
• All DisplayPort/USB cables and power adapter included for hassle-free installation
• Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands

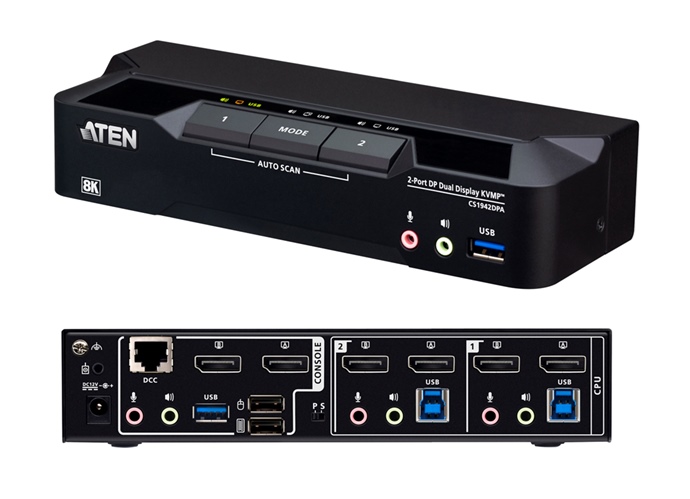

CS1942DPA
Specification:
Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse wheel, RS-232 Commands, Remort port selector
Connectors
Console Ports 2 x USB Type A Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
4 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
LEDs
KVM 3 (Orange)
Audio 3 (Green)
USB Link 3 (Green)
Switches
Selected 3 x Pushbutton
Station Selection 1 x Slide Switch
Emulation
Keyboard / Mouse USB
Video Up to 7680 x 4320 @ 60Hz, 5120 x 2880 @ 60Hz, 4096 x 2160 @ 240Hz
Scan Interval 1-99 seconds (default: 5 seconds)
Power Consumption DC12V:3.29W:109BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.47 kg ( 1.04 lb )
Dimensions (L x W x H) 20.00 x 7.18 x 4.30 cm
(7.87 x 2.83 x 1.69 in.)
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
