CS1944DPA - ATEN - 2 Port USB 3.0 8K DisplayPort Dual-Display KVM Switch (Cables included) Displayport KVM *NEW*
4 Port DisplayPort KVM Switch
Description:

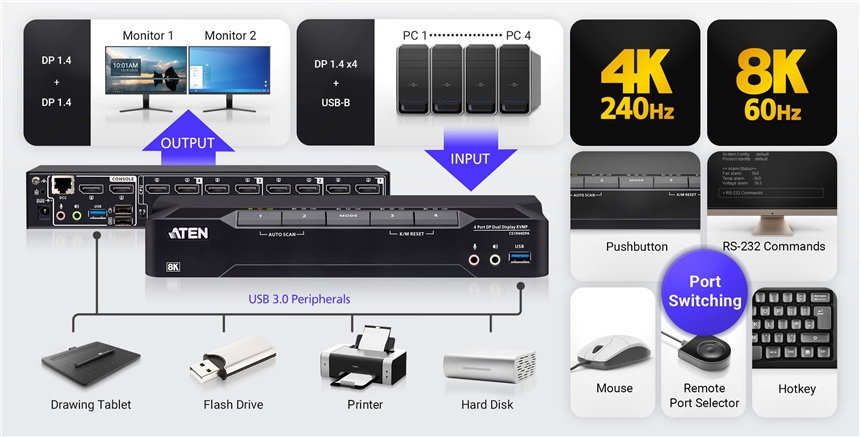

4 DisplayPort PCs, 2 DisplayPort Displays, One KVM Console The CS1944DPA is a 4-port KVM switch that empowers you to switch between projects with ease on a 4-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of four DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1944DPA is definitely your key to a workspace transformation. Level up your multitasking productivity at this dual-display KVM console with: ● A pristine visual experience up to 4K@240 and 8K@60 ● Ultra-wide 21:9 and 32:9 aspect ratios for an expansive viewing experience ● A 2-port USB 3.0 hub for peripheral sharing, supporting up to 5 Gbps data transfer ● Multi-system compatibility with Windows, macOS, and Linux
Features:
Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.
• Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 240 Hz
• Daisy-chainable quad-display control connecting two CS1944DPAs to manage up to four PCs and four displays with one keyboard and mouse
• All DisplayPort/USB cables and power adapter included for hassle-free installation Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands

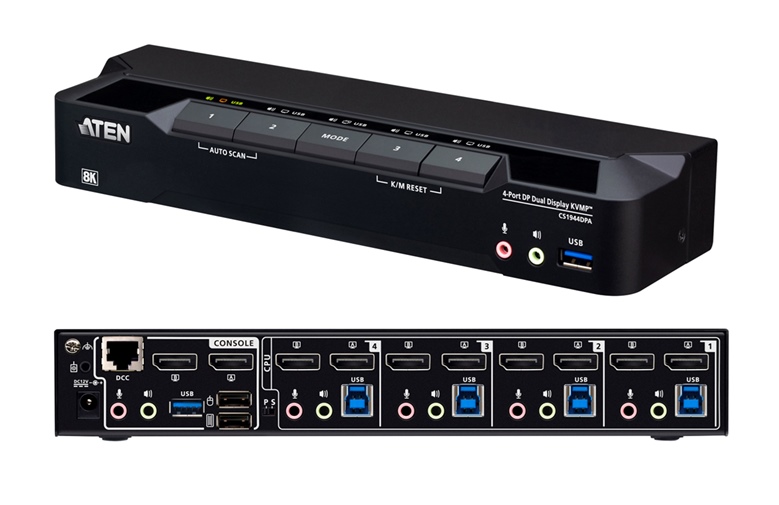

CS1944DPA
Specification:
Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse wheel, RS-232 Commands, Remote port selector
Connectors
Console Ports 2 x USB Type A Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
8 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
LEDs
KVM 5 (Orange)
Audio 5 (Green)
USB Link 5 (Green)
Switches
Selected 5 x Pushbutton
Station Selection 1 x Slide Switch
Emulation
Keyboard / Mouse USB
Video Up to 7680 x 4320 @ 60 Hz, 5120 x 2880 @ 60Hz, 4096 x 2160 @ 240Hz
Scan Interval 1-99 seconds (default: 5 seconds)
Power Consumption DC12V:4.88W:144BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.62 kg ( 1.37 lb )
Dimensions (L x W x H) 26.00 x 7.18 x 4.30 cm
(10.24 x 2.83 x 1.69 in.)
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
