ZPE-NSR2U-432-POE-DAC - ZPE - NSR - Nodegrid Net Services Router, ZPE Net SR 2U Chassis - 4-Core Intel CPU, 32GB (Non-ECC) RAM, 32GB. 1x USB Serial, 2x 2.5GbE, 4x SFP+, 2 NVMe Slots, Backplane Switch, RAID, POE out. Dual AC (DAC) Hot Swappable Power *NEW*

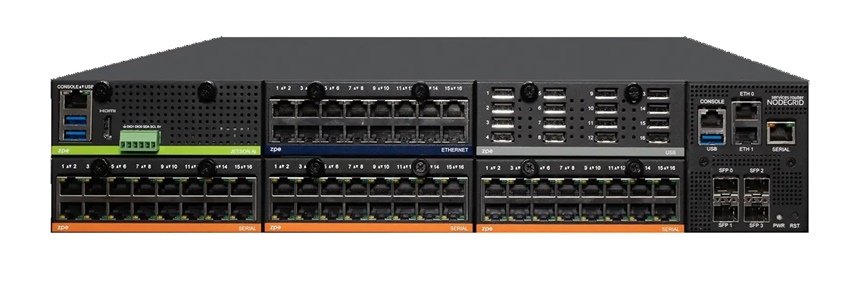

Nodegrid Net Services Router 2U - Modules sold separately*
Description:
Nodegrid Net Services Router 2U (NSR 2U) is a high-density, modular open-platform appliance purpose-built for large edge environments colocation data centers, major branch offices, and remote facilities where diverse device populations, high PoE demands, and limited on-site staff require a single platform that does more. Expanding on the proven Nodegrid NSR platform, the NSR 2U doubles expansion capacity to 10 slots, adds 4x native 10G SFP+ uplinks, and delivers up to 400W of PoE power all in a field-serviceable 2U chassis with hot-swappable power supplies and fans that any on-site personnel can replace without specialized training or service interruption. Powered by an Intel Xeon D processor and the 64-bit Linux-based Nodegrid OS, the NSR 2U consolidates routing, switching, security, OOB access, and Docker application hosting into a single platform with modular services cards for networking, serial/USB, 5G/4G LTE, Wi-Fi, compute, and storage replacing the sprawl of single-purpose appliances that large edge sites typically accumulate.
Features:
Modular 10 slot platform with flexible expansion
Centralized management with automation and ZTP
Encrypted connectivity using SSL, IPsec, and WireGuard
Separation of control and data planes for secure management
Multi function operation on a single device
Built in L2/L3 networking, QoS, MPLS, and VPN services
Vendor neutral out of band access for serial, USB, IPMI, and power
Optional 5G/4G LTE, Wi Fi AP/client, and diverse interface cards
Fine grained security with AD/LDAP policies and firewall filtering
Clustering for unified visibility, monitoring, alerts, and failover

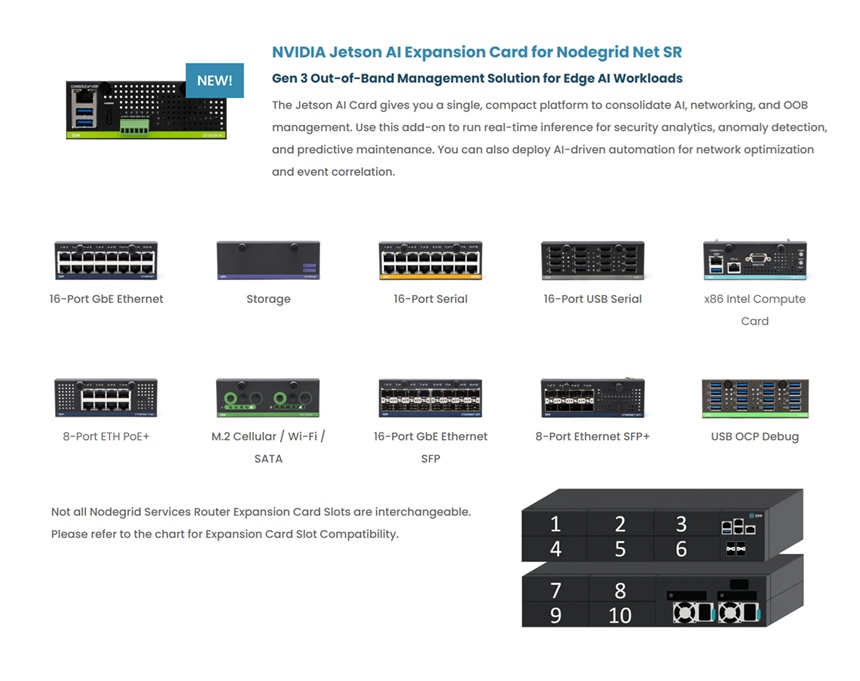

Nodegrid Net Services Router 2U - Modules Available:
Specification:
Hardware Specifications
CPU
Intel x86_64 multi-core - 4 Core CPU (all models)
Memory & Storage
8 (Non-ECC) to 64GB (ECC) of DDR4 DRAM
32GB FLASH (mSATA SSD) (Upgradable)
2X NVMe Empty Slots (upgradable, max 8TB)
Interfaces
1X RJ-45 Serial RS-232 Port
4X SFP+ Ethernet
1X Console on RJ45
2X USB 2.0
2X 2.5Gb Ethernet
1X USB 3.0
1X RJ11 (Power Control)
Warranty
2 Years
Software Specifications
Port Access
Direct access by port name, TCP port, device name & IPv4/IPv6
High performance port login: <1 sec on SSH, <3 sec on Telnet
1,000 simultaneous sessions
Port sharing, port custom field support, port icon configuration, port search
Device clustering across multiple Nodegrid units
Device URL TM bookmarks, Fire Trail TM secure tunnels
Break-over SSH support
Power Management Integration within users session
HTML5 viewer (No Java) for IPMI SoL & KVM, WEB, Console, Virtual Media support
System Management
Extensible, automated control based on actionable real-time data
Web GUI management portal, web console, Command Line Interface (CLI), Linux root shell, SNMP, RESTful API
Zero Touch Provisioning(ZTP)via LAN/DHCP,WAN/ZPE Cloud, USB for configuration & firmware updates
Multiple & customizable user levels of access
Auto-discovery via networks can & custom probes
SNMP v1, v2, and v3 over IPv4 and IPV6. SNMP v3 with authentication MD5, SHA-224, SHA-256, SHA-384, SHA-512, encryption DES, AES-128, AES-192, AES-256
Orchestration Integration & Automation:Puppet,Chef, Ansible, RESTful, ZPE Cloud & a Cluster feature
File sharing via FTP,NFS,SSHFS,Windows Sharing, web file browser, ZPE Cloud
Remote Procedure Call (RPC, gRPC)
NetFlow, LLDP, APIs
Access Protocols
HTTPS, SSHv2; optional HTTP, Telnet & SSHv1
Device View Options
Tree, Table, Geo Map, Node & WEB Interface with search
Managed Power Devices
Vendor Neutral PDU support
Managed IPMI Devices
OpenBMC, HP iLO, Dell iDRAC, Supermicro/Quanta IPMI, IPMI 2.0 compatible devices, Cisco CIMC/UCS, IBM IMM, Oracle ILOM, EMC/NetApp Storage IPMI
Security
Hardened device with BIOS protection,TPM 2.0, UEFI Secure Boot, Self-Encrypted Disk (SED), Signed OS, Geofencing
X.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH & HTTPS (TLSv1.3, TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
SAML 2.0 support via Duo, Okta, Ping Identity, ADFS
Two-Factor Authentication with RSA & DUO
Local, backup-user authentication support
User-access lists per port
Group/role-based authorization: AD/LDAP, RADIUS, TACACS+ & SAML 2.0
Fine Grain port access, power access, appliance privilege
IP packet & security filtering, IP forwarding support
SSL VPN (Client & Server), IPsec, Firewall
MD5/SHA System configuration checksum
System event logging to file, syslog, email, ZPE Cloud,Splunk & more
Custom security with secure default settings
Strong password enforcement
Network Function Virtualization (NFV)
Operating System
Built-in 64-bit Nodegrid OS
Infrastructure Specifications
Power
Dual AC 100-240 VAC, 50/60 Hz
Hot swappable PSU
400W PoE Power Budget
Physical
Front-Rear mounting brackets
Dimensions (WΧDΧH): 565mm Χ 438mm Χ 88.8 mm (2U)
Weight (Chassis): 29.6 lbs
Environmental
Operation: 0 to 45° C (32 to 113° F), 5-95% RH, non-cond.
Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.
