Unfortunately we do not stock the Avocent DSR1010-EU digital KVM over IP switch, 1 digital user, 1 local user, 16 systems currently.


Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

Avocent DSR1010-EU digital KVM over IP switch, 1 digital user, 1 local user, 16 systems

Product images may be generic and may not reflect actual item.

Description:

DS Series Designed for demanding IT environments, Avocent's DS Series offers superior digital and analog switching solutions for multi-platform, multi-location, multi-device access and control. The feature rich DS Series simplifies network access and control obstacles by putting the entire data center at your fingertips. From access at the rack to access at your desk, the DS Series switching provides an unmatched solution for today's data centers. The DS Series includes DSView, DSR1010, DSR2010, DSR4010, DS1800, CPS and SPC. The DS Series provides powerful and flexible control:

  • Access to all data center devices through industry standard TCP/IP connections
  • Dramatic reduction in cable volume with DSRIQ Smart Cable
  • Optimal scalability and flexibility
  • The best of both worlds; analog KVM access at the rack and IP connectivity at the desk, in the NOC or from any location in the world.

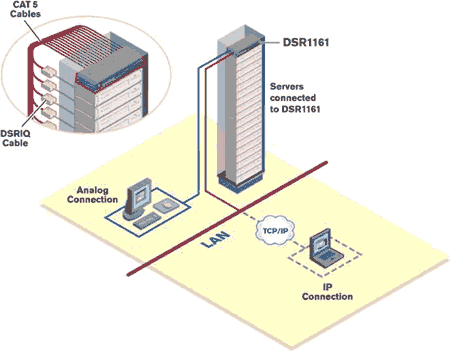

    • DSR1010/ Originally known as Avocent DSR1161-EU The DS Series DSR1010 single user 16-port switch provides both digital and analog connectivity to PC-based servers. The DSR1010model contains one local port for access at the rack and an Ethernet port allowing one user access over IP. Avocent's patented OSCAR on-screen GUI reporting interface provides rack level access and control. DSView Windows interface offers flexible access for IP-based server management from any location in the world. The DSR1010 works with the DSRIQ smart cable. The DSRIQ CAT 5 cabling provides connectivity from the DSR1010 to the server. With its CAT 5 design, the DSRIQ significantly reduces cable bulk in the rack and is well suited for high-density installations.

    Features:

  • Provides analog access at the rack, and digital IP access at the desk, in the NOC or any location around the world

  • Managed with Avocent's patented OSCAR® on-screen GUI for access at the rack

  • Managed with Avocent's DSView Windows application for IP access from any location

  • Dramatic reduction in cable volume with DSRIQ Smart Cable

  • Optimal scalability and flexibility

  • Best of both worlds
  • -Analog KVM access at the rack

  • -IP connectivity at the desk, in the NOC or any location in the world

    • The DS series provides huge advantages in the ges may be generic and may not reflect actual item.

    Specification:

    Server Ports
    Number 16
    Types PS/2 Keyboard,PS/2 Mouse
    Connectors RJ45
    Sync Types Separate horizontal and vertical
    Plug and Play DDC2B

    Video Resolution
    Local Port Maximum 1600 x 1280 @75Hz
    Digital Port Maximum 1280 x 1024 @75Hz

    Dimensions
    Height 1.75in 1U form factor (4.45cm)
    Width 17in (43.18cm)
    Depth 11in (27.94cm)

    Weight
    8lbs (3.6kg)without cables

    Power
    Heat Dissipation 92 Btu/hr
    Airflow 8 cfm
    Power Consumption 25 watts
    AC-input power 40W maximum
    AC-input Range 100 to 240 VAC
    AC-input current rating 1A
    AC-input cable 18 AWG three-wire cable,with a three lead IEC-320 receptacle on the power supply end and a country dependent plug on the resource end.
    AC Frequency 50 -60 Hz Auto Sensing
    Temperature 32 to 104 degrees Fahrenheit (0 to 40 degrees Celsius) operating
    -4 to 158 degrees Fahrenheit (-20 to 70 degrees Celsius) nonoperating
    Humidity 10 to 95%noncondensing

    Agency Approvals
    Agency Approvals EN55022 Class A,EN55024,EN6200-3-2, EN6100-3-3, FCC15 Class A, VCCI Class A, IEC950, EN60950, UL 1950 third edition, CSA C22.2 No.950

    Configuration Port
    Type Serial RS232
    Connectors DB9 Male

    Network Connection
    Type Ethernet: IEEE 8023,10 Base-T,
    Fast Ethernet: IEEE 802.3U,
    Connectors RJ45

    User Consoles
    Type PC running Windows NT or 2000 OS and DSR console application
    Minimum Configuration -300MHz Pentium III,64Mb RAM,100BaseT NIC, XGA Video
    Recommended Configuration -450MHz Pentium III ,128Mb Ram, 100BaseT NIC,SXGA Video

    Local Port
    Type PS/2 and VGA
