Unfortunately we do not stock the Rose UC1-1X4U (Multiplatform) Ultraconsole KVMC 4 port (2 x serial) & (2 x KVM) switch currently.

Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

Rose UC1-1X4U (Multiplatform) Ultraconsole KVMC 4 port (2 x serial) & (2 x KVM) switch

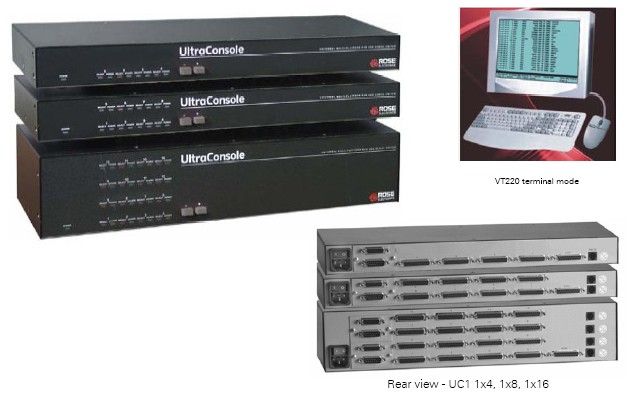

Ultraconsole Range 4, 8 and 16 port versions

Description:

Single user KVM Matrix switch Connects up to 1,000 computers to a console user station Fixed port configuration with plug-in expansion cards allows the system to easily be expanded as the system grows Supports asynchronous serial devices such as Touch-screens and serial printers Compatible with PCs, Sun, Unix, Linux, and Mac systems Easy installation and configuration Available in three models The UltraConsole Advantage. . . The UltraConsole Series represents the latest in KVM matrix switching technology at affordable prices. The UltraConsole series allows for a central user station to connect to four, eight or sixteen computers per chassis, expandable to as many as 1,000 computers or servers. The UltraConsole series is available in three models, 1 x 4, 1 x 8 and 1 x 16. Units easily connect together with bus cables to make a seamless and truly scalable KVM matrix switch. The advanced distributed design of the UltraConsole uses networking communication technology to reduce cost, eliminate single points of failure, and increase reliability. The Advanced Visual Interface makes configuring, monitoring and installation easy with on-screen instructions and help. Use the on-screen display to name computers, select computers, view connections, assign users and other features. The UltraConsole provides serial support to access computers, routers, Ethernet hubs, Unix devices and more. The KVM workstation can perform as a ‘dumb terminal” with an eight-page scroll buffer. Local monitor connection, security, flash memory, system status and many other features ensure that the UltraConsole will streamline your data center or server room and provide a central access point for your system.

Features:

Powerful and expandable, yet low cost

Plug-in expansion cards and the nits modulardesign make it simple to install, expand, andmaintain

Uses UltraCable for superior cable management with lengths up to 100 feet

Video resolution up to 1600 x 1280

Control serial devices from a single KVM
station

Advanced Visual Interface (AVI) on-screen display informs you of connection status between units in an expanded system

Multi-lingual AVI – English, French, German, Spanish, Italian, Portuguese

Pre-configuration feature allows installation without powering down servers

Security system with userID, password, and profile prevents unauthorized configuration and controls computer access

Status screen displays inter-unit connections, communication, computer power, and other information

Flash memory with free, lifetime upgrades of firmware maintains compatibility with the
latest devices and features

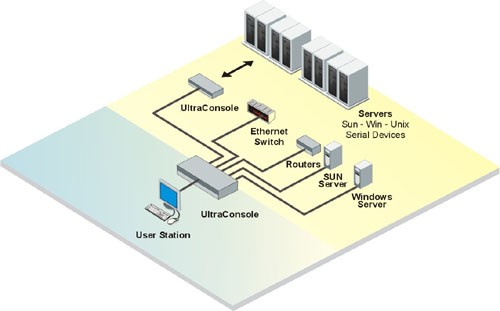

Ultraconsole typical setup

Specification:

Dimensions 4/8 port 16.7”W x 4.85”D x 1.75”H
42.4W x 12.3D x 4.4H (cm)
16 port 16.7”W x 4.85”D x 3.50”H
42.4W x 12.3D x 8.9H (cm)

Weight 4/8 port 4lbs / 1.8kg
16 port 8lbs / 3.6kg

Connectors Power – IEC320
CPU/KVM – DB25F
Expansion – DB15M/F
RS232 – RJ12 (6-pin)

Power 90 – 240 VAC, auto-switching

Video bandwidth 1 x 4 / 1 x 8 – 250MHz
1 x 16 – 100MHz

Video sync HV sync, composite, sync-on-green

Controls Lighted power on/off switch

Indicators Chassis Power, CPU select, CPU power

Chassis Electro galvanized steel, black powder-coated

Environmental 0°-45°C, 5%-80% non-condensing RH

Approvals FCC, VCCI, UL, cUL, TUV, CE
